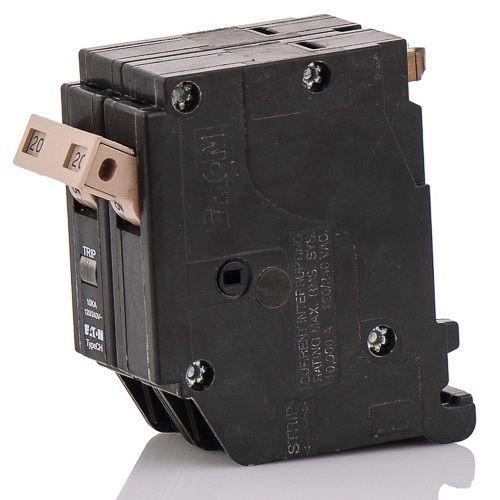

EATON CHF220 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Common/Flag Trip

Selected CHF220EATON CHF220 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Common/Flag Trip
CHF220EATON CHF220 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Common/Flag Trip

Documents

Short Description

EATON has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive "Trip to OFF" and simple 1-Step Reset feature, EATON has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the EATON brand. These additional features truly make this product a best-in-class offering for residential, light commercial and OEM applications.

Features

  • Easy to install
  • Easy to reset
  • Best-in-class performance
  • Circuit breaker is clearly marked identifying amperage, ratings and EATON brand
  • Trip flag visibly indicates breaker status
  • Switching duty rated, HACR rated, single-pole requires one 2/4 in space with trip indication
  • 14 to 8 copper, 14 to 10 aluminum AWG wire
  • 3/4 in space

Specification

Interrupt Rating
10
Mounting Type
Plug-On
Number Of Poles
2
Temperature Rating
60 to 75 deg C
Trip Type
Common
Type
Type CHF Standard
Voltage Rating
120/240 VAC
Wire Size
14 to 8 AWG
Application
For loadcenters
Standard & Approvals
UL 489
Amperage Rating
20 A
Dimensions
3 in L x 3/4 in W x 3 in H
