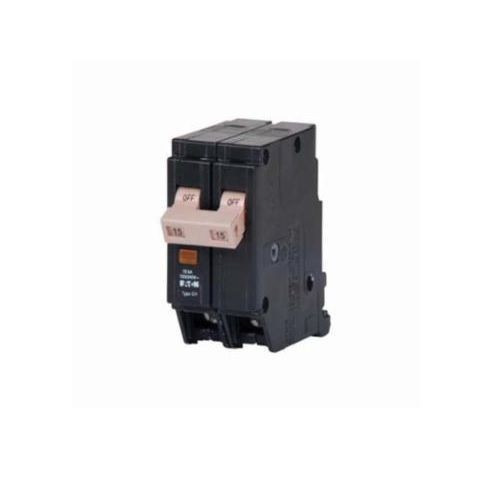

Cutler-Hammer CHF220SW Type CHF Neutral Switch Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA, 2 Poles

Selected CHF220SWCutler-Hammer CHF220SW Type CHF Neutral Switch Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA, 2 Poles
CHF220SWCutler-Hammer CHF220SW Type CHF Neutral Switch Circuit Breaker With Mechanical Trip Flag, 120/240 VAC, 20 A, 10 kA, 2 Poles

Short Description

Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Features

  • Requires two 3/4 in spaces
  • Copper/aluminum wire

Specification

Interrupt Rating
10 kA
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
C-HCHF220SW
Temperature Rating
60 to 75 deg C
Type
Type CHF Neutral Switch
Voltage Rating
120/240 VAC
Wire Size
(1) 14 to 8 AWG, (2) 14 to 10 AWG
Standard & Approvals
HACR Listed
