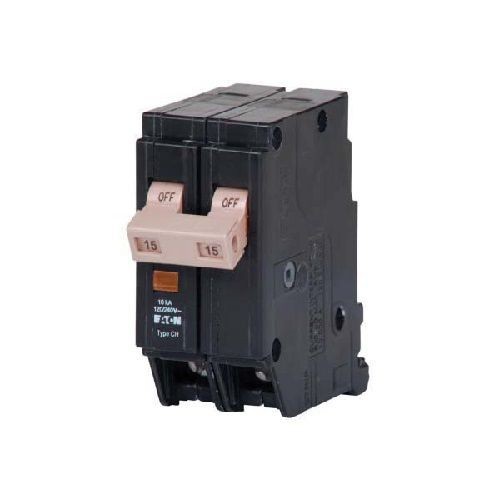

EATON CHF245 Type CHF Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles, Common/Thermal Magnetic/Flag Trip

Selected EATON CHF245 Type CHF Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles, Common/Thermal Magnetic/Flag Trip
EATON CHF245 Type CHF Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles, Common/Thermal Magnetic/Flag Trip

Documents

Short Description

Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Features

  • Requires two 3/4 in spaces
  • Copper/aluminum wire

Specification

Interrupt Rating
10 kA
Mounting Type
Plug-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
45 A
Temperature Rating
60 to 75 deg C
Trip Type
Long Time/Instantaneous
Voltage Rating
120/240 VAC
Wire Size
10 to 1/0 AWG
Type
Type CHF
Dimensions
1.5 in L x 3.2 in W x 2.6 in H
Catalog ID
C-HCHF245
