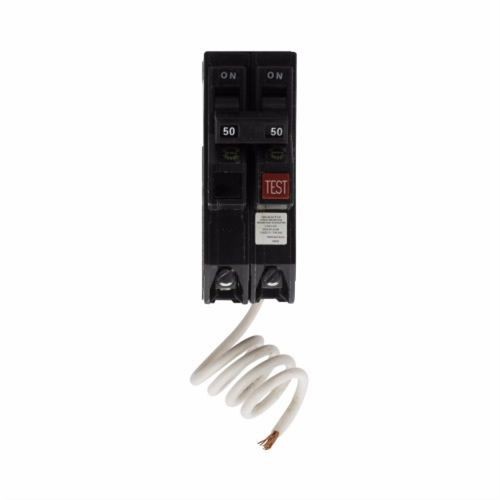

EATON CHQ250GF Type CHQ Ground Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Common Trip

Selected EATON CHQ250GF Type CHQ Ground Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Common Trip
EATON CHQ250GF Type CHQ Ground Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Common Trip

Short Description

Eaton's CH ground fault current interrupters (GFCIs) are 3/4 in wide and provide superior safety over a standard electrical outlet in areas where electricity may come into contact with water. GFCIs are required in any application near water such as kitchen countertops, bathrooms, swimming pools, hot tubs, and outdoor receptacles. They immediately break the circuit when electrical current leakage is detected, reducing the risk of shock and electrocution.

Features

  • The "panel neutral" conductor connects to the neutral bar, even though the neutral is not included in a 240 VAC load circuit, this connection is necessary to supply a 120 VAC power source to the ground fault sensing circuit
  • Add the AFCI tester and circuit analyzer to verify proper wiring in a circuit, it's the only tester with GFI function and line neutral test feature
  • Use with square D type QO loadcenters
  • (2) 3/4 in wide per pole

Specification

Interrupt Rating
10 kA
Number Of Poles
2
Temperature Rating
60 to 75 deg C
Voltage Rating
120/240 VAC
Wire Size
14 to 10 AWG
Standard & Approvals
UL Listed
Amperage Rating
50 A
Type
Type CHQ
Dimensions
3/4 in W
