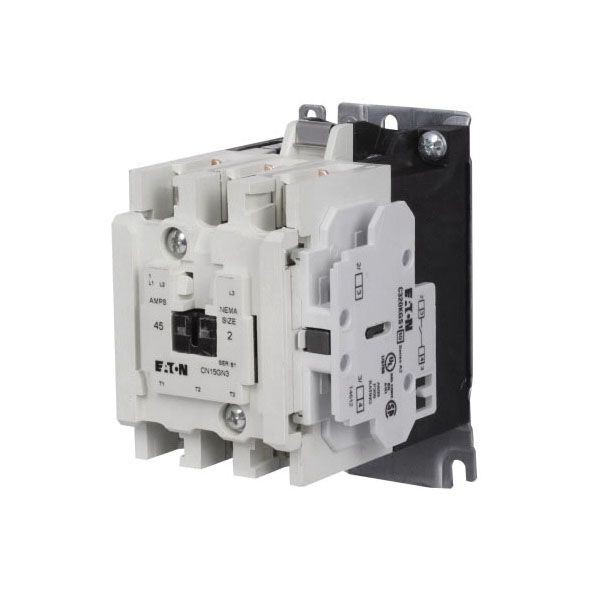

EATON CN15GN3AB Freedom 1/3-Phase G-Frame Non-Reversing NEMA Contactor With Steel Mounting Plate, 110/120 VAC V Coil, 45 A, 1NO Contact, 3 Poles

Selected CN15GN3ABEATON CN15GN3AB Freedom 1/3-Phase G-Frame Non-Reversing NEMA Contactor With Steel Mounting Plate, 110/120 VAC V Coil, 45 A, 1NO Contact, 3 Poles
CN15GN3ABEATON CN15GN3AB Freedom 1/3-Phase G-Frame Non-Reversing NEMA Contactor With Steel Mounting Plate, 110/120 VAC V Coil, 45 A, 1NO Contact, 3 Poles

Documents

Short Description

Eaton's freedom series Adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

Features

  • Horizontal or vertical mounting on upright pane allows for application freedom
  • Screw type power terminals have captive, backed-out self-lifting pressure plates with screws result in reduced wiring time
  • Accessible terminals allow for ease of use and are convenient for simple wiring
  • Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
  • Fingerproof shields are available to prevent electrical shock
  • Contactor frame size 2, 45 A continuous amperes
  • 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 hp at 480/600 VAC coil power rating
  • 1 or 3 phase
  • Common control

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
45 A
Number Of Poles
3
Series
Freedom
Type
Non-Reversing
Standard & Approvals
UL File No. E1491, UL Guide NLDX, CSA File No. LR353, CSA Class 321104, IEC Certified, VDE Approved
Dimensions
4.44 in L x 2.56 in W x 5.05 in H
Coil Power Rating
3 hp
Coil Voltage
110/120 VAC
Contact Configuration
1NO
Enclosure Type
Open
