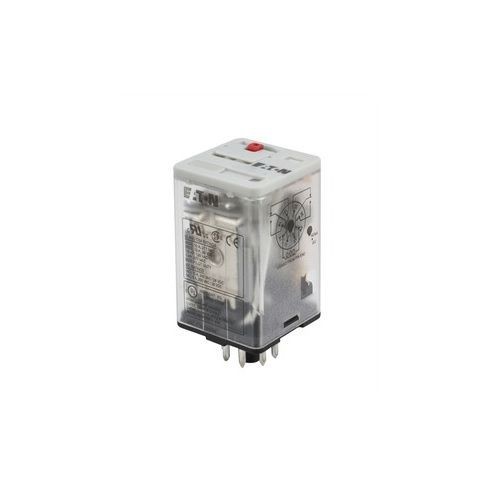

EATON D3RF2A Ice Cube Full Featured General Purpose Relay, 10 A, 8 Pin, DPDT Contact, 120 VAC V Coil

Selected EATON D3RF2A Ice Cube Full Featured General Purpose Relay, 10 A, 8 Pin, DPDT Contact, 120 VAC V Coil
EATON D3RF2A Ice Cube Full Featured General Purpose Relay, 10 A, 8 Pin, DPDT Contact, 120 VAC V Coil

Documents

Short Description

The D3 Series of relays provides excellent functionality in a popular octal base design. Rigid pins and guide allow for quick and easy installation with little risk of damage.

Features

  • The contact operation can be easily checked by Push to-Test button
  • Flag indicator shows relay status in manual or powered condition
  • LED status lamp shows coil ON or OFF status ideal for use in low light applications
  • Push-to-Test button allows for manual operation of relay without the need for coil power
  • Lock-down door holds pushbutton and contacts in the operate position when activated
  • Finger-grip cover allows operator to remove relays from sockets easily
  • ID tag/write label to identify relays in multiple relay circuits
  • Bipolar LED allows for reverse polarity applications

Specification

Mounting Type
Socket
Number of Pins
8
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Base Type
Octal
Catalog ID
C-HD3RF2A
Coil Voltage
120 VAC
Contact Form
DPDT
Dimensions
2.2 in L x 1.37 in W x 1.39 in H
Enclosure Type
IP40
Temperature Rating
-40 to 131 deg F
Standard & Approvals
CE Certified, CSA Certified, RoHS Compliant, UL Listed
Amperage Rating
10 A
