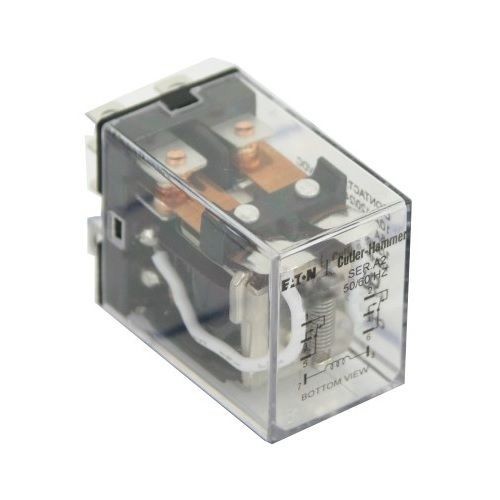

EATON D7PR4A Plain Cover Standard General Purpose Relay, 15 A, 4PDT Contact, 120 VAC V Coil
EATON D7PR4A Plain Cover Standard General Purpose Relay, 15 A, 4PDT Contact, 120 VAC V Coil
SKU: C-HD7PR4A
Manufacturer Part Number: D7PR4A
UPC: 782114161012
Documents
Features
- The D7 series is a cost-effective control relay with high dielectric strength and high current-carrying capacity
- Arc barrier equipped relay with high dielectric strength
- Panel and DIN rail mounting
- Silver alloy contact material
- 100 mA at 5 VDC (0.5 W) minimum switching requirement
- Plain cover
- Mechanical flag indicator
- 2220 Ohm coil resistance
- Flag indicator, lock-down door, finger-grip cover, ID tag
- Test button actuator
- 14-Blade terminal style
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Plug-In |
| Series | D7 |
| Temperature Rating | -40 to 131 deg F |
| Standard & Approvals | cRUus Listed, CE Certified, UL File No. E37317, E65657, CSA File No. LR217069, RoHS Compliant |
| Amperage Rating | 15 A |
| Dimensions | 1.6 in H x 1.1 in W x 0.83 in D |
| Coil Voltage | 120 VAC |
| Contact Form | 4PDT |
| Display | LED Indicating Light |
| Enclosure Type | IP40 |
