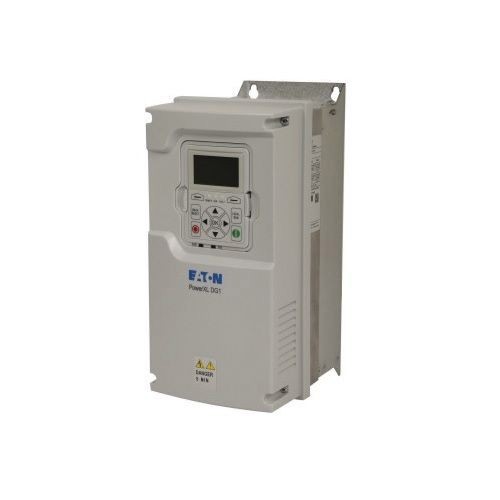

EATON PowerXL™ DG1-345D6FB-C21C 3-Phase Adjustable Variable Frequency Drive, 230/208 to 240 VAC, 5.6 A, 3 hp, 9-1/2 in W x 17-1/2 in D

Selected DG1-345D6FB-C21CEATON PowerXL™ DG1-345D6FB-C21C 3-Phase Adjustable Variable Frequency Drive, 230/208 to 240 VAC, 5.6 A, 3 hp, 9-1/2 in W x 17-1/2 in D
DG1-345D6FB-C21CEATON PowerXL™ DG1-345D6FB-C21C 3-Phase Adjustable Variable Frequency Drive, 230/208 to 240 VAC, 5.6 A, 3 hp, 9-1/2 in W x 17-1/2 in D

Short Description

The DG1 general purpose drives are part of EATON next generation PowerXL® series of adjustable frequency drives specifically engineered for today's more demanding commercial and industrial applications. The power unit makes use of the most sophisticated semiconductor technology and a highly modular construction that can be flexibly adapted to meet the customer's needs. The control module was designed to include today's standard communication protocols and I/O while still having the modularity to add additional option cards. EATON patented Active energy control is also a standard feature on DG1 drives, offering customers increased efficiency, safety and reliability. These drives continue the tradition of robust performance and raise the bar on features and functionality, ensuring the best solution at the right price.

Features

  • FR1 frame size
  • Integrated common mode reduction 5% DC link choke with input surge protection
  • Real-time clock supports calendaring and PLC functionality
  • Graphic LCD display and keypad supports simple menu navigation as well as on-screen diagnostics and troubleshooting
  • Local remote operation from keypad and two configurable soft keys
  • Conformal coated control and power boards standard
  • Control logic can be powered from an external auxiliary control panel internal drive functions and fieldbus if necessary
  • Seamless integration into Ethernet/IP networks via EIP-assist I/O tag-generation tool
  • Quick disconnect terminals for I/O connections supports fast easy installation
  • 3 input/output phase reference
  • 2.2 kW power rating
  • Internal EMC filter and DC choke protection
  • Internal brake chopper
  • Coated board
  • Ethernet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
  • 50/60 Hz input frequency
  • 2 expansion slots
  • 3-phase input, 3-phase output
  • Active energy control, quick start wizard software

Specification

Height
13 in
Mounting Type
Panel
Type
Adjustable
Width
9-1/2 in
Depth
17-1/2 in
Display Type
LCD
Includes
Keypad
Horsepower
3 hp
Amperage Rating
5.6 A
Standard & Approvals
UL, cUL Listed, CE, EAC Certified, RoHS Compliant, C-Tick, EN 61800-5-1, EN 62061, IEC 61508
Voltage Rating
230/208 to 240 VAC
Series
PowerXL™ DG1
Enclosure Type
NEMA 1/IP21
