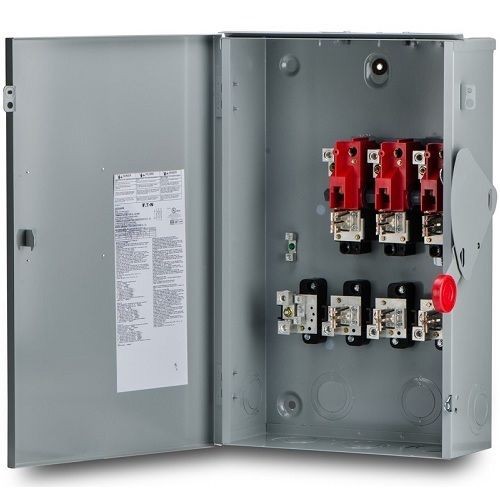

EATON DG324URK DG Series Non-Fusible Rainproof General Duty Safety Switch, 240 VAC, 200 A, 15 hp, 30 hp, TPST Contact, 3 Poles
EATON DG324URK DG Series Non-Fusible Rainproof General Duty Safety Switch, 240 VAC, 200 A, 15 hp, 30 hp, TPST Contact, 3 Poles
SKU: C-HDG324URK
Manufacturer Part Number: DG324URK
UPC: 782113213576
Features
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
- Non-fusible switches are 100% fully rated
- 200 to 600A features K-series design
- With Class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Design for Series K general duty 200 A and higher
Specification
| Material | Steel |
|---|---|
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=WyoWF7Jkxjc |
| Amperage Rating | 200 A |
| Catalog ID | C-HDG324URK |
| Dimensions | 10 in L x 15.52 in W x 25.23 in H |
| Enclosure Type | NEMA 3R |
| Finish | Painted Galvanized |
| Series | DG Series |
| Type | General Duty Non-Fusible |
| Voltage Rating | 240 VAC |
| Application | For Residential, Commercial and Light-Duty Motor Circuits and Service Entrance |
| Standard & Approvals | NEMA KS-1, UL File No. E5239, UL 98 Listed |
| Phase | 1/3/2025 12:00:00 AM |
| Horsepower | 15 hp/50 hp |
