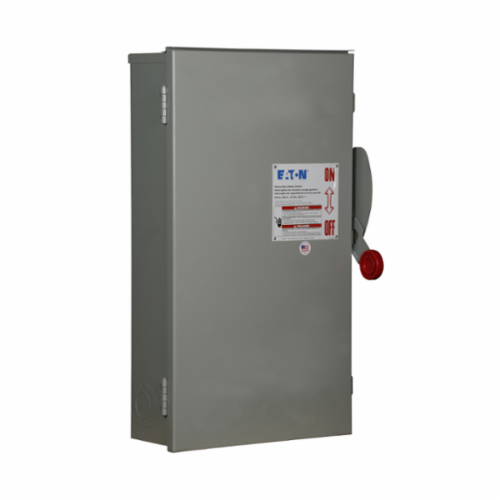

Cutler-Hammer DH224NRK Heavy Duty Safety Switch, 240 V, 200 A, DPST, 2 Poles
Cutler-Hammer DH224NRK Heavy Duty Safety Switch, 240 V, 200 A, DPST, 2 Poles
SKU: C-HDH224NRK
Manufacturer Part Number: DH224NRK
UPC: 782113206653
Documents
Features
- Ample wire bending space provides for easier installation
- Visible double-break quickmake, quick-break rotary blade mechanism
- Side opening door on all enclosure
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With Class R fuses, switches may be used on systems capable of delivering 100000A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indication
- Tangential knockouts on 30-60 A designs
- Double padlocking capability on 30-100 amp
- Triple padlocking capability on 200-600 A
- Additional door locking capability
- Bilingual English/Spanish door label on 30-100A
- Tri-lingual nameplates
- Class H fuses
- Fusible with neutral configuration
- 3-Phase hp ratings shown are grounded B phase ratings; UL listed
- Painted steel enclosure material
Specification
| Mounting Type | Surface |
|---|---|
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Finish | Galvanized |
| Power Rating | 15 hp at 240 VAC 1 Phase, 25 hp at 240 VAC 3 Phase (Standard Fuse); 15 hp at 240 VAC 1 Phase, 60 hp at 240 VAC 3 Phase (Time Delay Fuse); 40 hp at 250 VDC |
| Type | Heavy Duty |
| Voltage Rating | 240 V |
| Application | Commercial and Industrial |
| Dimensions | 30 in L x 18 in W x 9-1/2 in H |
| Contact Form | DPST |
| Catalog ID | C-HDH224NRK |
| Standard & Approvals | NEMA KS-1, UL File No. E5239, 98 Listed |
