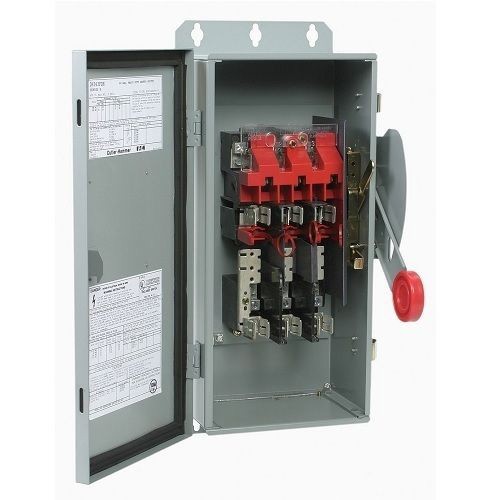

EATON DH361UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, TPST Contact, 3 Poles

Selected FilesC HDH361UWK
FilesC HDH361UWK

Documents

Short Description

Eaton's heavy duty non-fusible safety switches provide a means to manually connect or disconnect the load from the source. The heavy duty non-fusible safety switch is available in a variety of enclosures including NEMA 1, 3R, 12, 4 and 4X. Switches are 100% load-break and 100% load-make rated and are suitable for service entrance use. Available from 30A to 1200 A.

Features

  • Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
  • Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
  • Triple padlocking capability increases personnel safety
  • Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
  • Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
  • 100% rated device means the switch may be used continuously up to its rated current
  • Meets stringent UL 98 standards for safety, durability and reliability

Specification

Material
304 Stainless Steel
Number Of Poles
3
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=WyoWF7Jkxjc
Amperage Rating
30 A
Catalog ID
C-HDH361UWK
Contact Form
TPST
Dimensions
10.22 in L x 8.76 in W x 14.14 in H
Enclosure Type
NEMA 4X
Phase
3
Short Circuit Rating
200
Type
Non-Fusible
Voltage Rating
600 VAC
Standard & Approvals
UL 98
