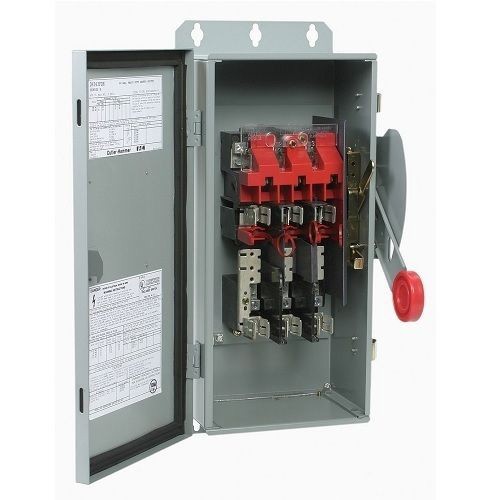

EATON DH362FGK DH Series Heavy Duty Fusible Safety Switch, 600 VAC, 60 A, 25 hp, 50 hp, TPST Contact, 3 Poles
EATON DH362FGK DH Series Heavy Duty Fusible Safety Switch, 600 VAC, 60 A, 25 hp, 50 hp, TPST Contact, 3 Poles
SKU: C-HDH362FGK
Manufacturer Part Number: DH362FGK
UPC: 782113205977
Documents
Short Description
Features
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
- Suitable for service entrance applications unless otherwise noted
- Deionizing arc chutes; arc chutes confine and suppress the arcs produced by opening contacts under load
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- Clearly visible palm fitting red handle
- Premium 316-grade stainless steel enclosures offer better corrosion resistance in the presence of most chemicals, salts and acids and is more resistant to marine atmospheres
- Visible double-break quickmake, quick-break blades
- Visible ON/OFF indications
- 30 to 1200A NEMA 12 designs convertible to NEMA 3R by opening factory-installed drain hole
- Tri-lingual nameplates
- Design for all Series K heavy-duty
Specification
| Material | Steel |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 60 A |
| Contact Form | TPST |
| Enclosure Type | NEMA 1 |
| Finish | Painted |
| Phase | 3 |
| Voltage Rating | 600 VAC |
| Horsepower | 50 hp |
| Series | DH Series |
| Dimensions | 16-1/2 in L x 9-1/2 in W x 8-1/2 in H |
| Catalog ID | C-HDH362FGK |
| Mounting Type | Surface/Panel |
| Standard & Approvals | NEMA KS-1, UL File No. E5239, UL 98 Listed |
| Application | For Light to Heavy Commercial and Industrial Applications |
| Type | Heavy Duty Fusible |
