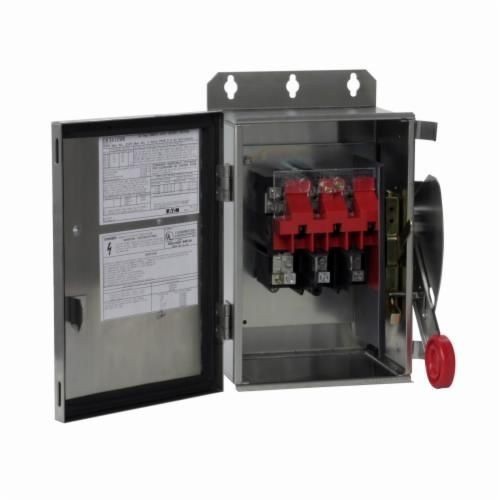

EATON DH362UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, TPST Contact, 3 Poles
EATON DH362UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, TPST Contact, 3 Poles
SKU: C-HDH362UWK
Manufacturer Part Number: DH362UWK
UPC: 782113206172
Short Description
Features
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- 100% rated device means the switch may be used continuously up to its rated current
- Meets stringent UL 98 standards for safety, durability and reliability
Specification
| Material | 304 Stainless Steel |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Phase | 3 |
| Short Circuit Rating | 200 kA |
| Type | Non-Fusible |
| Voltage Rating | 600 VAC |
| Standard & Approvals | UL 98 |
| Amperage Rating | 60 A |
| Dimensions | 10.22 in L x 7.73 in W x 19.08 in H |
| Contact Form | TPST |
| Enclosure Type | NEMA 4X |
| Horsepower | 10/20/60 hp |
