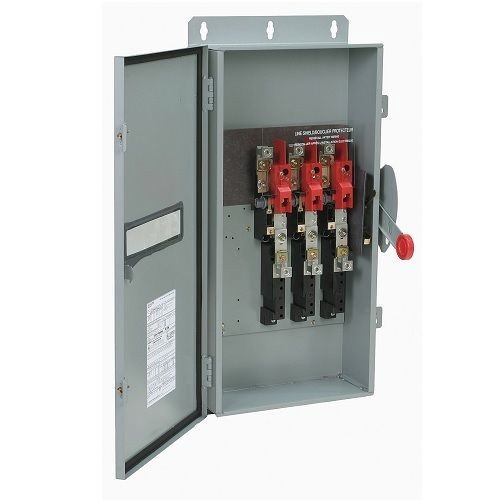

Cutler-Hammer DH364UGK K Series Non-Fusible Heavy Duty Safety Disconnect Switch, 600 VAC, 200 A, 15 hp, TPST Contact Form, 3 Poles

Selected FilesC HDH364UGK
FilesC HDH364UGK

Documents

Short Description

EATON's Heavy Duty Non-fusible Safety Switches provide a means to manually connect or disconnect the load from the source. The heavy duty non-fusible safety switch is available in a variety of enclosures including NEMA 1, 3R, 12, 4, and 4X. Switches are 100% load-break and 100% load-make rated and are suitable for service entrance use. Available from 30 to 1200 A.

Features

  • Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
  • Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
  • Triple padlocking capability increases personnel safety
  • Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
  • Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
  • 100% rated device means the switch may be used continuously up to its rated current
  • Meets stringent UL 98 standards for safety, durability and reliability

Specification

Material
Steel
Mounting Type
Surface
Number Of Poles
3
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
200 A
Catalog ID
C-HDH364UGK
Contact Form
TPST
Dimensions
10 in L x 15.52 in W x 9.5 in H
Enclosure Type
NEMA 1
Finish
Painted
Phase
3
Series
K Series
Short Circuit Rating
200
Type
Non-Fusible
Voltage Rating
600 V
Application
Commercial, Institutional and Industrial Applications
Standard & Approvals
NEMA KS-1, UL 98, UL 50
Horsepower
15 hp
