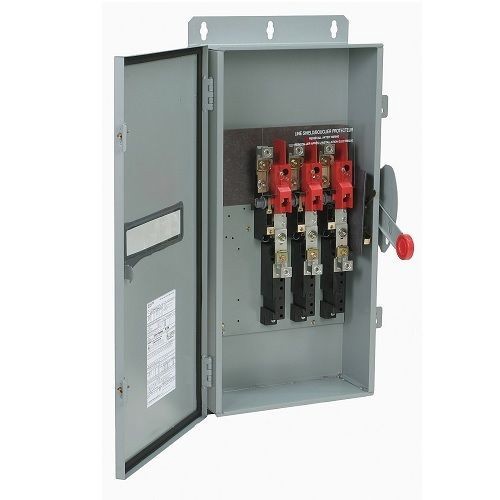

EATON DH365NRK K Series Fusible Heavy Duty Rainproof Single Throw Safety Switch, 600 VAC, 400 A, 250 hp, 350 hp, TPST Contact, 3 Poles

EATON DH365NRK K Series Fusible Heavy Duty Rainproof Single Throw Safety Switch, 600 VAC, 400 A, 250 hp, 350 hp, TPST Contact, 3 Poles
SKU: C-HDH365NRK
Manufacturer Part Number: DH365NRK
UPC: 782113207261
Documents
Short Description
Features
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
- Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- Complete accessory and renewal parts data shown on inner door label
- Meets stringent UL 98 standards for safety, durability and reliability
- Accepts class H fuses
Specification
| Material | Steel |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=WyoWF7Jkxjc |
| Amperage Rating | 400 A |
| Contact Form | TPST |
| Enclosure Type | NEMA 3R |
| Phase | 3 |
| Type | Fusible |
| Voltage Rating | 600 VAC |
| Standard & Approvals | UL 98 |
| Short Circuit Rating | 100 |
| Finish | Painted Galvanized |
| Dimensions | 45.5 in L x 24.38 in W x 10.25 in H |
| Catalog ID | C-HDH365NRK |
| Horsepower | 350 hp |
