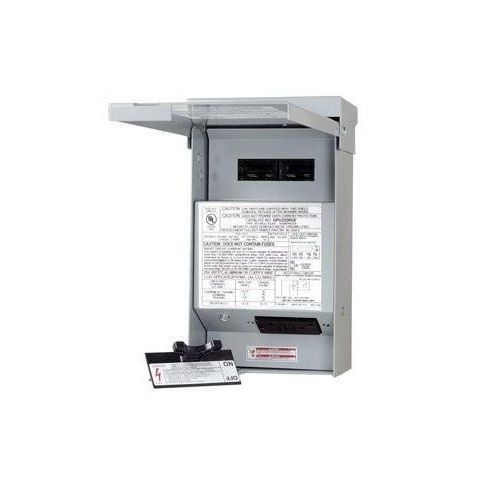

Cutler-Hammer DPU222RGF20ST Non-Fused Pullout Air Conditioning Disconnect Switch With 20 A Ground Fault Receptacle, 240 VAC, 60 A, 10 hp, 2 Poles

Selected DPU222RGF20STCutler-Hammer DPU222RGF20ST Non-Fused Pullout Air Conditioning Disconnect Switch With 20 A Ground Fault Receptacle, 240 VAC, 60 A, 10 hp, 2 Poles
DPU222RGF20STCutler-Hammer DPU222RGF20ST Non-Fused Pullout Air Conditioning Disconnect Switch With 20 A Ground Fault Receptacle, 240 VAC, 60 A, 10 hp, 2 Poles

Documents

Short Description

An air conditioning disconnect (ACD) is a disconnect located between a loadcenter (distribution panel) and air conditioner. Eaton's ACD product line provides an installer or repair personnel with a visible disconnecting means when performing maintenance. ACDs are also known as disconnects, pullouts or air conditioning switches. Non-fused pullout and molded case switch devices provide personnel with a visible ON-OFF disconnecting means. While fused pullout units also perform this function, they also provide an additional level of protection for the air conditioner.

Features

  • ON/OFF control provided by a pullout handle
  • Pullout handle can be conveniently stored in the compartment in the OFF position, helping to prevent the handle from being misplaced
  • Protective shield cannot be removed until the pullout handle is removed, disconnecting the power

Specification

Material
Steel
Mounting Type
Surface
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
60 A
Catalog ID
C-HDPU222RGF20ST
Color
Gray
Dimensions
7-1/2 in L x 4-3/4 in W x 13 in H
Enclosure Type
NEMA 3R
Finish
Galvanized
Phase
1
Series
DP Series
Temperature Rating
60/75 deg C
Type
Non-Fused Pullout
Voltage Rating
240 VAC
Standard & Approvals
CSA Certified, UL listed File No. E132354, E143893, E196365
Horsepower
10 hp
