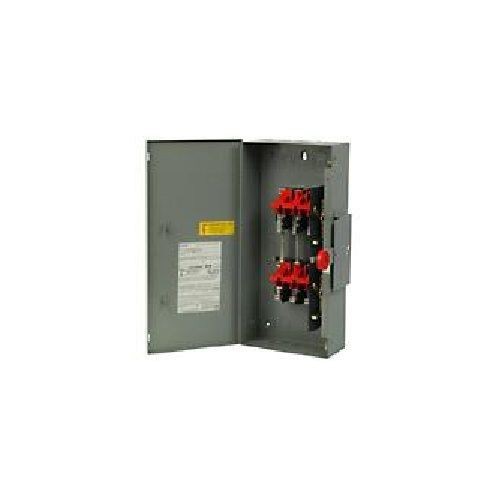

EATON DT322UGK K Series Heavy Duty Non-Fusible Safety Switch, 240 VAC/250 VDC, 60 A, TPDT Contact, 3 Poles
EATON DT322UGK K Series Heavy Duty Non-Fusible Safety Switch, 240 VAC/250 VDC, 60 A, TPDT Contact, 3 Poles
SKU: C-HDT322UGK
Manufacturer Part Number: DT322UGK
UPC: 782113440033
Documents
Features
- Used to open or close a circuit
- Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
- Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
- Also commonly referred to as a disconnect switch or disconnect
- Easy to install
- Ample wiring space
- Padlockable
- A double throw safety switch is sometimes referred to as a transfer switch
- It performs the same function as a safety switch by opening or closing a circuit
- Primary use is to transfer service from a normal power source to an alternate source (residential generator) or to switch from one load circuit to another
- Non-fusible fuse configuration
- Suitable for service entrance use with a neutral or ground lug kit installed
- Painted steel enclosure
Specification
| Material | Steel |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=-DDjTjcaPL8 |
| Amperage Rating | 60 A |
| Catalog ID | C-HDT322UGK |
| Contact Form | Double Throw |
| Dimensions | 11.19 in L x 11.95 in W x 25.02 in H |
| Enclosure Type | NEMA 1 |
| Series | DT |
| Type | Heavy Duty Double Throw |
| Voltage Rating | 240 VAC/250 VDC |
| Standard & Approvals | UL Listed |
