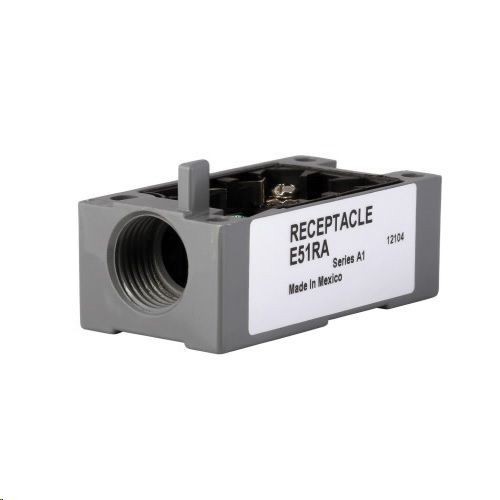

EATON E51RA Sensor Receptacle, Inductive Proximity Photoelectric Sensor, 20 to 264 VAC/VDC, 1NC-1NO Output, 2-Wire Wiring
EATON E51RA Sensor Receptacle, Inductive Proximity Photoelectric Sensor, 20 to 264 VAC/VDC, 1NC-1NO Output, 2-Wire Wiring
SKU: C-HE51RA
Manufacturer Part Number: E51RA
UPC: 782113884844
Features
- -25 to 70 deg C operating temperature
- 2.92 in L x 1.54 in W x 1.06 in H
- Assembled inductive proximity fiber optic sensor type
Specification
| Material | Die Cast Zinc |
|---|---|
| Output Type | NO-NC |
| Sensor Type | Proximity/Photoelectric |
| Series | E51 |
| Suitable For Use With | Sensor Body and Sensor Head |
| Voltage Rating | 20 to 264 VAC/VDC |
| Wiring Type | 2-Wire |
| Standard & Approvals | UL Listed, CSA Certified |
| Connection Type | Screw |
| Environmental Conditions | NEMA 3/3S/4/4X/6/6P/12/13/IP67 |
