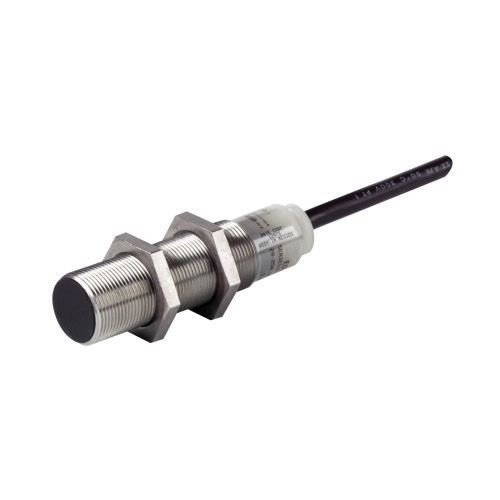

EATON E57LAL18A2 E57 Premium+ 2-Wire Shielded Straight Proximity Sensor, Inductive, 1NO Contact, 20 to 250 VAC
EATON E57LAL18A2 E57 Premium+ 2-Wire Shielded Straight Proximity Sensor, Inductive, 1NO Contact, 20 to 250 VAC
SKU: C-HE57LAL18A2
Manufacturer Part Number: E57LAL18A2
UPC: 782113743004
Documents
Short Description
Features
- Manufactured to take the physical and environmental abuse
- Designed with stainless steel barrel and new potting compound for robust, high temperature, high-pressure washdown, as well as intense shock and vibration applications
- Unmatched high noise immunity eliminates problems associated with electrical noise (all models > 20 V/m) 360 deg output status indicator is visible from any angle and in any light condition
- Resettable short circuit protection and reverse polarity in select models
- 360 deg viewable LED
- 250 mA at 250 VAC contact rating
- 79.2 ft cord
- PVC cable
- 2 m cable connection
Specification
| Material | 303 Stainless Steel |
|---|---|
| Mounting Type | Flush |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=baa_aiJ4L7E |
| Accuracy | <3% |
| Amperage Rating | 250 mA |
| Contact Configuration | NO |
| Enclosure Type | NEMA 4/4X/6/6P/12/13/IP67/IP69K |
| Sensing Distance | 5 mm |
| Sensing Method | Inductive |
| Sensing Position | End |
| Series | E57 |
| Size | 18 mm Dia |
| Temperature Rating | -13 to 158 deg F |
| Type | 2-Wire AC Premium Shielded |
| Voltage Rating | 20 to 250 VAC |
| Standard & Approvals | cULus 508, CE Certified |
| Catalog ID | C-HE57LAL18A2 |
