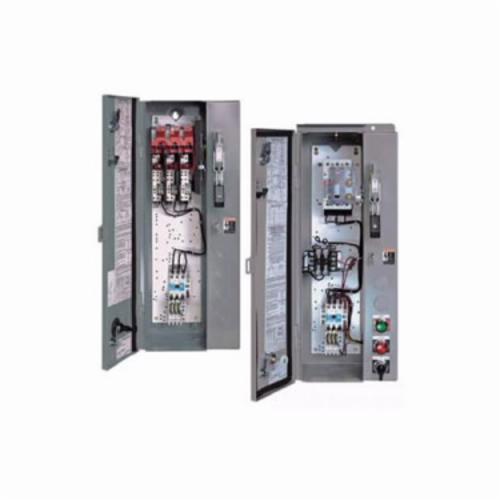

EATON ECN0521BAA Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter, 220/240 VAC V Coil, 3 Poles, NEMA 1 Enclosure
EATON ECN0521BAA Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter, 220/240 VAC V Coil, 3 Poles, NEMA 1 Enclosure
SKU: C-HECN0521BAA
Manufacturer Part Number: ECN0521BAA
UPC: 782114016138
Documents
Short Description
Features
- No cover mounted pilot devices
- Type 1 - general purpose
- 240/480 to 220/440 VAC wired for 240 VAC primary, 110 to 120 VAC at 50 to 60 Hz secondary voltage rating
- Screw type power terminals have captive, backed-out self-lifting pressure plates with screws result in reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- 15 hp at 230 VAC motor power rating
Specification
| Frequency Rating | 50 to 60 Hz |
|---|---|
| Motor Power | 15 hp |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | C-HECN0521BAA |
| Coil Voltage | 220/240 VAC |
| Connection Type | Screw Terminal |
| Dimensions | 14.9 in L x 10 in W x 8.6 in H |
| Enclosure Type | NEMA 1 |
| Phase | 1 |
| Series | Freedom |
| Size | NEMA 2 |
| Type | Non-Combination Non-Reversing |
| Voltage Rating | 600 VAC |
| Standard & Approvals | UL File No. E1491, CSA Certified |
