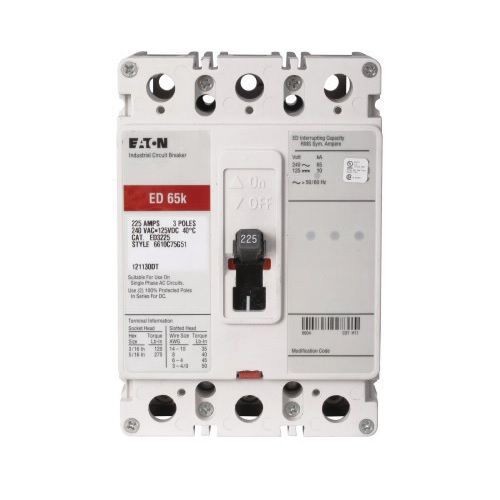

EATON ED3225BP10 C Series Type ED Molded Case Circuit Breaker, 240 VAC/125 VDC, 225 A, 65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Selected ED3225BP10EATON ED3225BP10 C Series Type ED Molded Case Circuit Breaker, 240 VAC/125 VDC, 225 A, 65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
ED3225BP10EATON ED3225BP10 C Series Type ED Molded Case Circuit Breaker, 240 VAC/125 VDC, 225 A, 65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Documents

Features

  • Patented contact design features high speed blow open action, resulting in superior performance
  • Suitable for reverse feed applications
  • They have proven user acceptance for over 20 years and meet or exceed north American standards

Specification

Frame
F
Frequency Rating
50/60
Material
Glass Polyester
Number Of Poles
3
Series
C Series
Temperature Rating
40 deg C
Type
Type ED
Amperage Rating
225 A
Dimensions
3.38 x 4.13 x 4.13 in
Connection Type
Load
Interrupt Rating
65/10
Standard & Approvals
ARRA, Buy American Act Compliant, CSA C22.2 No. 5, RoHS Compliant, UL 489
Application
Panelboard, Distribution Panels, Switchboard, Motor Control Center and Busway
Trip Type
Fixed Thermal Magnetic
Voltage Rating
240 VAC/125 VDC
