EATON EGHMVD12BX High Performance Handle Mechanism Kit, 4/4X/IP95 NEMA Rating, Rotary Handle/Operation, For Use With G Series EG-Frame Molded Case Circuit Breaker

Selected EGHMVD12BXEATON EGHMVD12BX High Performance Handle Mechanism Kit, 4/4X/IP95 NEMA Rating, Rotary Handle/Operation, For Use With G Series EG-Frame Molded Case Circuit Breaker
EGHMVD12BXEATON EGHMVD12BX High Performance Handle Mechanism Kit, 4/4X/IP95 NEMA Rating, Rotary Handle/Operation, For Use With G Series EG-Frame Molded Case Circuit Breaker

Documents

Short Description

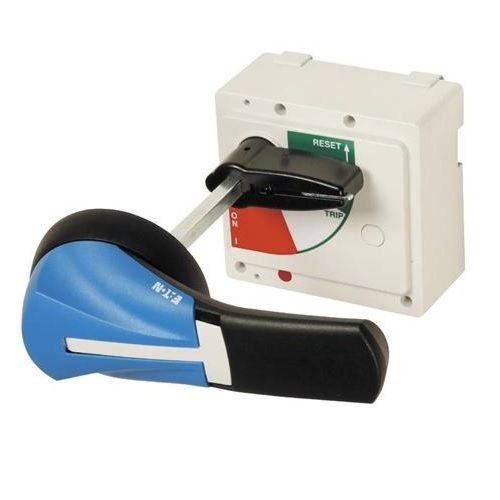

The high performance rotary handle mechanism uses a simple, yet robust design to make installation and operation easy. The external handle's key functional components are all metallic, ensuring reliability. The metalon metal interface between the handle and shaft prevents contaminant buildup that could impede operation, while UV and chemical agent-resistant materials protect the handle from heat and fading in direct sunlight, as well as chemicals that may be introduced in harsh environments. In addition to its robust design features, the handle mechanism has stand-off support that allows for easy operation with a gloved hand. With a shallow profile, the handle can easily be used in applications where an internal or double door is required.

Features

  • Conveniently packaged as kit containing handle, shaft and mechanism
  • Metallic functional components ensure reliability
  • Metal-on-metal interface between handle and shaft
  • UV and chemical agent-resistant materials protect the handle
  • Shallow profile
  • Same handle can be used on multiple frame sizes, reducing the number of parts needed
  • Red and yellow handles to designate emergency disconnecting means
  • All handle mechanisms can accept padlocks or multihasp locks for added flexibility
  • Fast and easy installation

Specification

Handle Color
Black/Blue
Handle/Operation
Rotary
NEMA Rating
NEMA 4/4X/IP95
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=PY52j05p7to
Catalog ID
C-HEGHMVD12BX
Shaft Length
12 in
Suitable For Use With
G Series EG Frame Molded Case Circuit Breaker
Type
High Performance
Application
Circuit Protection Applications
Standard & Approvals
UL 508A, NFPA 79, RoHS, ARRA, Buy American Act Compliant
Includes
Shaft, Mechanism, Handle
