Cutler-Hammer C Type EHD Thermal Magnetic Molded Case Circuit Breaker, 277 VAC/125 VDC, 20 A, 18 kA Interrupt, 1 Poles

Selected EHD1020LCutler-Hammer C Type EHD Thermal Magnetic Molded Case Circuit Breaker, 277 VAC/125 VDC, 20 A, 18 kA Interrupt, 1 Poles

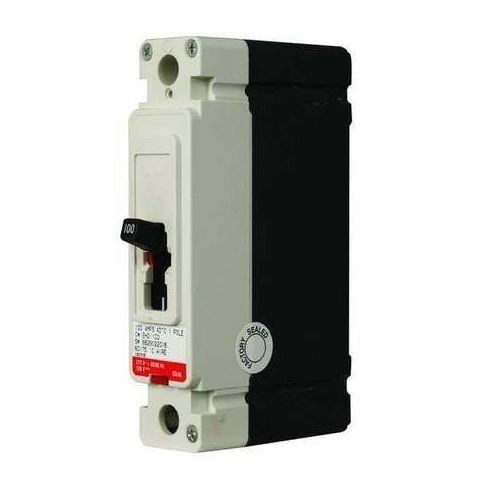

EHD1020LCutler-Hammer C Type EHD Thermal Magnetic Molded Case Circuit Breaker, 277 VAC/125 VDC, 20 A, 18 kA Interrupt, 1 Poles

Documents

Short Description

Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Features

  • All F-frame circuit breakers are HACR rated
  • All circuit breakers 10 through 50 amperes are suitable for HID (high intensity discharge) use
  • All F-frame circuit breakers are suitable for reverse feed use
  • Fixed instantaneous trip, non-interchangeable trip units

Specification

Frame
F
Frequency Rating
50/60 Hz
Interrupt Rating
18 kA
Mounting Type
Panel
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Actuator Type
Handle
Amperage Rating
20 A
Catalog ID
C-HEHD1020L
Connection Type
Line and Load Lug
Dimensions
6 in H x 1-3/8 in W x 3-3/8 in D
Enclosure Type
NEMA AB-1/AB-3
Phase
1
Series
C
Temperature Rating
40 deg C
Trip Type
Long Time and Instantaneous
Type
Type EHD Thermal Magnetic
Voltage Rating
277 VAC/125 VDC
Application
For panelboard, switchboard, motor control center and busway applications
Standard & Approvals
UL Listed, CSA Certified, Federal Spec. W-C-375b
