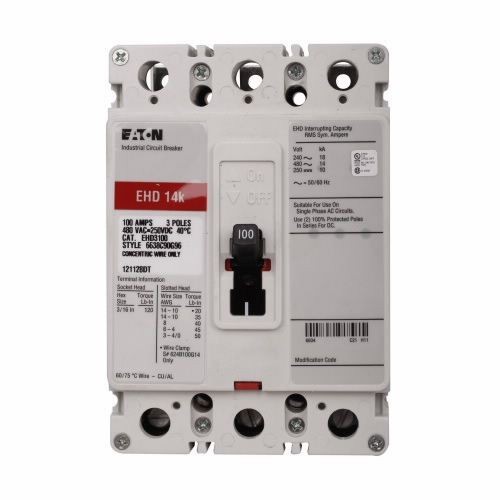

EATON EHD3100L C Series Type EHD Molded Case Circuit Breaker, 480 VAC/250 VDC, 100 A, 18 kAIC at 240 VAC/14 kAIC at 480 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
EATON EHD3100L C Series Type EHD Molded Case Circuit Breaker, 480 VAC/250 VDC, 100 A, 18 kAIC at 240 VAC/14 kAIC at 480 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
SKU: C-HEHD3100L
Manufacturer Part Number: EHD3100L
UPC: 786679317211
Documents
Short Description
Features
- All F-frame circuit breakers are HACR rated
- All circuit breakers 10 through 50 amperes are suitable for HID (high intensity discharge) use
- All F-frame circuit breakers are suitable for reverse feed use
- Fixed instantaneous trip, non-interchangeable trip units
Specification
| Frame | F |
|---|---|
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 14 kA |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=ZBPV2r7VTgw&t=33s |
| Actuator Type | Handle |
| Amperage Rating | 100 A |
| Dimensions | 3.38 x 4.13 x 6 in |
| Enclosure Type | NEMA AB1-1993 |
| Phase | 3 |
| Series | C |
| Temperature Rating | 40 deg C |
| Trip Type | Long Time and Instantaneous |
| Type | Type EHD Thermal Magnetic |
| Wire Size | 14 to 1/0 AWG |
| Application | For panelboard, switchboard, motor control center and busway applications |
| Standard & Approvals | UL Listed, CSA Certified, Federal Spec. W-C-375b |
| Voltage Rating | 480 VAC/250 VDC |
| Connection Type | Line and Load Lug |
| Catalog ID | C-HEHD3100L |
