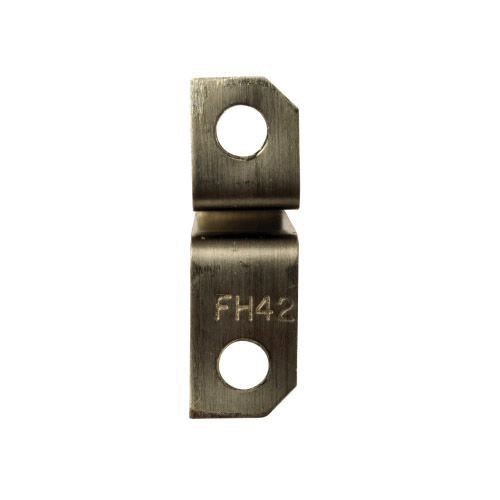

EATON FH42 Type B100 Overload Relay Heater
EATON FH42 Type B100 Overload Relay Heater
SKU: C-HFH42
Manufacturer Part Number: FH42
UPC: 786678670126
Features
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
- Single-phase requires 2 heaters, three-phase requires 3 heaters
- Used with starter sizes 0, 1 and 2
- Type A and B overload relay
- 9.6 to 10.5 A, 11.8 to 12.7 A non-compensating full load current
Specification
| Full Load Current Rating | 10.4 to 11.3/12 to 13.1 A |
|---|---|
| Series | A200/B100 |
| Trip Type | Thermal/Fast Trip |
| Standard & Approvals | UL Listed, CSA Certified |
| Enclosure Type | NEMA 0/1/2 |
