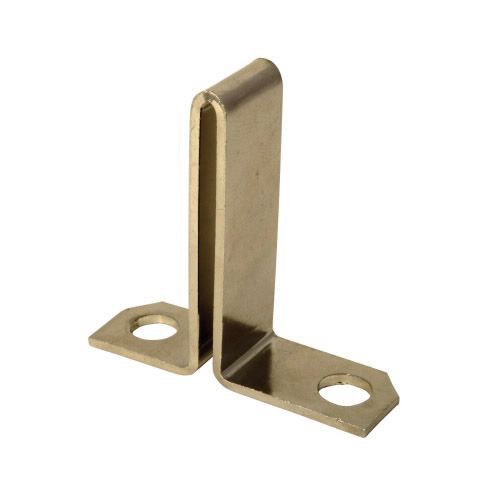

EATON FH89 Type B100 Overload Relay Heater
EATON FH89 Type B100 Overload Relay Heater
SKU: C-HFH89
Manufacturer Part Number: FH89
UPC: 786678671116
Features
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Used with A200 starter sizes 3 and 4, 3-phase only
- Type A and B overload relay
- 85 to 91 A non-compensating full load current
Specification
| Full Load Current Rating | 101 to 93 A |
|---|---|
| Series | A200 |
| Trip Type | Thermal/Fast Trip |
| Standard & Approvals | UL Listed, CSA Certified |
| Enclosure Type | NEMA 3/4 |
