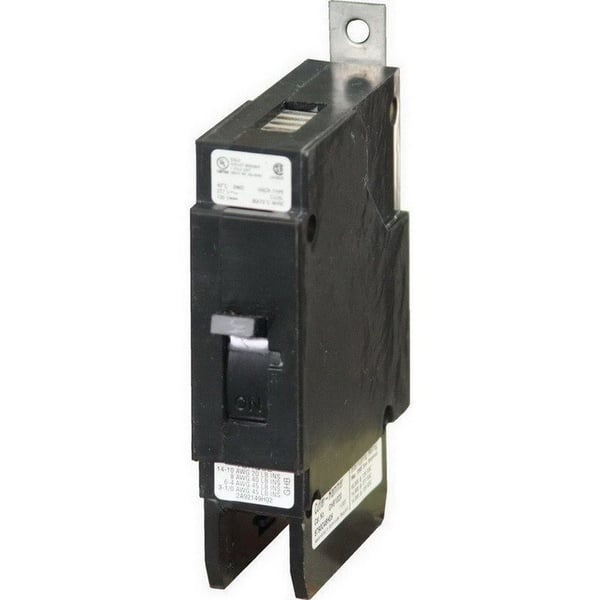

Cutler-Hammer C Type GHB Molded Case Circuit Breaker, 277/480 VAC/125 VDC, 40 A, 14 kA Interrupt, 1 Pole

Selected GHB1040Cutler-Hammer C Type GHB Molded Case Circuit Breaker, 277/480 VAC/125 VDC, 40 A, 14 kA Interrupt, 1 Pole
GHB1040Cutler-Hammer C Type GHB Molded Case Circuit Breaker, 277/480 VAC/125 VDC, 40 A, 14 kA Interrupt, 1 Pole

Documents

Short Description

Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Features

  • Patented contact design features high-speed "blow-open" action, resulting in superior performance
  • Cu/Al wire
  • Non-interchangeable trip

Specification

Interrupt Rating
14 kA
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
40 A
Connection Type
Line and Load Lug
Phase
1
Temperature Rating
40 deg C
Trip Type
Long Time and Instantaneous
Voltage Rating
277/480 VAC/125 VDC
Wire Size
10 to 1/0 AWG
Application
For panelboards
Standard & Approvals
UL Listed, CSA Certified
Frame
G
Type
Type GHB
Series
C
Dimensions
4 in H x 3 in W x 2.812 in D
Catalog ID
C-HGHB1040
Mounting Type
Bolt-On
