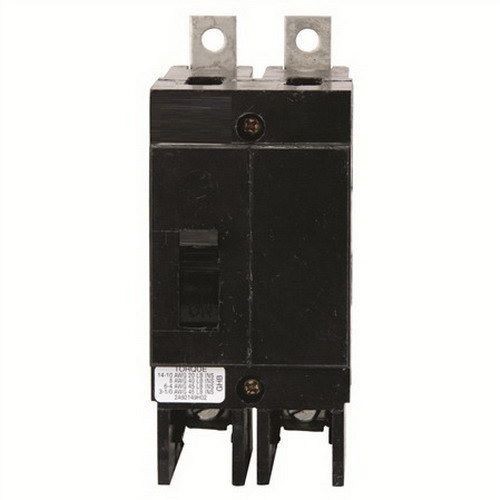

Cutler-Hammer GHB2100 Molded Case Circuit Breaker With Non-Interchangeable Trip Unit, 277/480 VAC/125/250 VDC, 100 A, 14 kA, 2 Poles, Non-Interchangeable/Thermal-Magnetic Trip

Selected Cutler-Hammer GHB2100 Molded Case Circuit Breaker With Non-Interchangeable Trip Unit, 277/480 VAC/125/250 VDC, 100 A, 14 kA, 2 Poles, Non-Interchangeable/Thermal-Magnetic Trip
Cutler-Hammer GHB2100 Molded Case Circuit Breaker With Non-Interchangeable Trip Unit, 277/480 VAC/125/250 VDC, 100 A, 14 kA, 2 Poles, Non-Interchangeable/Thermal-Magnetic Trip

Short Description

EATON's Series C molded case circuit breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Features

  • Patented contact design features high-speed "blow-open" action, resulting in superior performance
  • Circuit breakers significantly outperform the calculations listed in The Institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
  • Choose from a complete family of trip units including thermal magnetic, electronic, and magnetic only switches

Specification

Frame
G
Frequency Rating
50/60
Interrupt Rating
14
Mounting Type
Bolt-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
100 A
Connection Type
Line/Load
Dimensions
6.1 in L x 3.7 in W x 2.9 in H
Enclosure Type
NEMA 4
Phase
3
Temperature Rating
40
Trip Type
Non-Interchangeable/Thermal-Magnetic
Voltage Rating
277/480 VAC/125/250 VDC
Wire Size
10 to 1/0 AWG
Standard & Approvals
CSA Certified, Federal Specifications W-C375B, HACR Rated, UL Listed
Series
Type GHB
Catalog ID
C-HGHB2100
