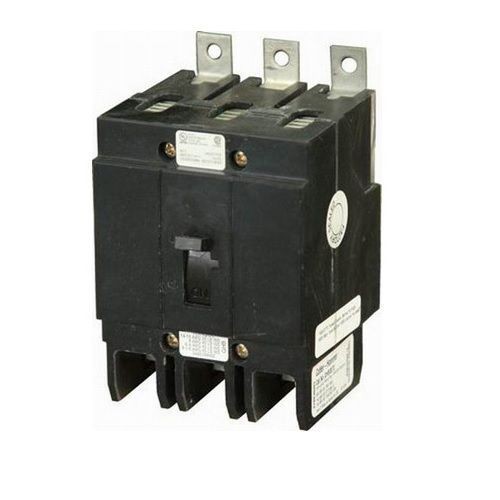

Cutler-Hammer QuickLag™ C Type GHB Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 90 A, 14 kA Interrupt, 3 Poles

Selected GHB3090Cutler-Hammer QuickLag™ C Type GHB Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 90 A, 14 kA Interrupt, 3 Poles
GHB3090Cutler-Hammer QuickLag™ C Type GHB Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 90 A, 14 kA Interrupt, 3 Poles

Documents

Short Description

Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Features

  • Patented contact design features high-speed "blow-open" action, resulting in superior performance
  • Cu/Al wire
  • Non-interchangeable trip

Specification

Frame
G
Interrupt Rating
14 kA
Mounting Type
Bolt-On
Number Of Poles
3
Phase
3
Series
C
Temperature Rating
40 deg C
Trip Type
Long Time and Instantaneous
Wire Size
10 to 1/0 AWG
Application
For panelboards
Standard & Approvals
UL Listed, CSA Certified
Amperage Rating
90 A
Voltage Rating
277/480 VAC/125/250 VDC
Type
Type GHB
Dimensions
4 in H x 3 in W x 2.812 in D
Connection Type
Line and Load Lug
