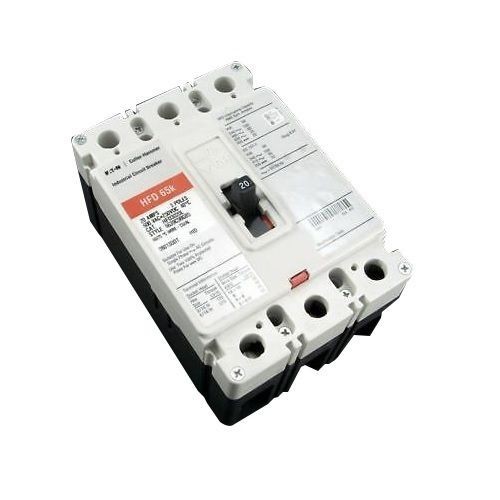

EATON HFD3040L C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 40 A, 65 kAIC at 480 VAC/100 kAIC at 240 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Selected HFD3040LEATON HFD3040L C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 40 A, 65 kAIC at 480 VAC/100 kAIC at 240 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
HFD3040LEATON HFD3040L C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 40 A, 65 kAIC at 480 VAC/100 kAIC at 240 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Documents

Short Description

Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Features

  • All F-frame circuit breakers are HACR rated
  • All circuit breakers 10 through 50 amperes are suitable for HID (high intensity discharge) use
  • All F-frame circuit breakers are suitable for reverse feed use
  • Fixed instantaneous trip, non-interchangeable trip units
  • Cu/Al wire

Specification

Frame
F
Frequency Rating
50/60 Hz
Mounting Type
Panel
Number Of Poles
3
Phase
3
Series
C
Temperature Rating
40 deg C
Trip Type
Long Time and Instantaneous
Type
Type HFD Thermal Magnetic
Voltage Rating
600 VAC/250 VDC
Wire Size
14 to 1/0 AWG
Standard & Approvals
UL Listed, CSA Certified, Federal Spec. W-C-375b
Amperage Rating
40 A
Dimensions
3.38 x 4.13 x 6 in
Actuator Type
Handle
Enclosure Type
NEMA AB1-1993
Connection Type
Line and Load Lug
Application
For panelboard, switchboard, motor control center and busway applications
Interrupt Rating
65 kA
