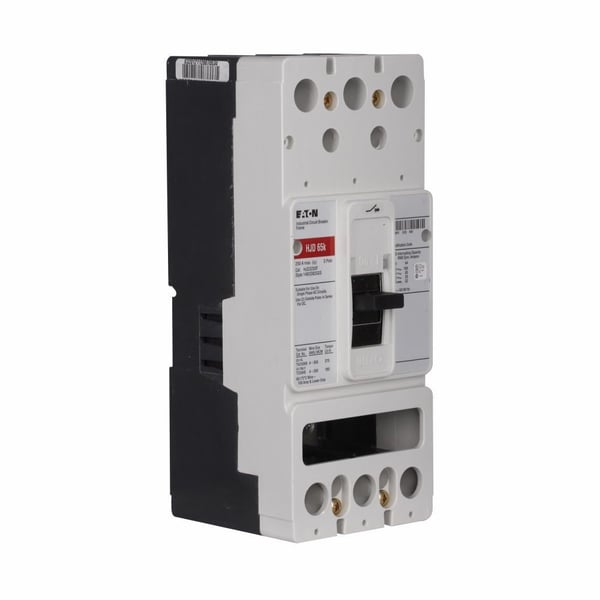

EATON HJD3250F Molded Case Circuit Breaker Frame, 600 VAC/250 VDC, 250 A, 3 Poles, Line/Load Terminal

Selected HJD3250FEATON HJD3250F Molded Case Circuit Breaker Frame, 600 VAC/250 VDC, 250 A, 3 Poles, Line/Load Terminal
HJD3250FEATON HJD3250F Molded Case Circuit Breaker Frame, 600 VAC/250 VDC, 250 A, 3 Poles, Line/Load Terminal

Short Description

Eaton series C molded case circuit breakers are used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC/250 VDC with current ratings up to 2500 A.

Features

  • Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculations
  • Patented contact design features high speed "blow open" action, resulting in superior performance
  • With non-interchangeable trip units are suitable for reverse feed use

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
C-HHJD3250F
Standard & Approvals
CSA C22.2 No. 5, AS 2184, BS 4752, IEC 60947-2, SABS 156, SEV 157-1, VDE 0660, Federal Specification W-C-375b, HACR Rated, UL 489
Suitable For Use With
C Series Type HJD J-Frame Interchangeable Fixed Thermal Magnetic Trip Molded Case Circuit Breaker
Terminal Type
Line/Load
Voltage Rating
600 VAC/250 VDC
Video
https://www.youtube.com/watch?v=ZBPV2r7VTgw&t=33s
Amperage Rating
250 A
IR Rating
65/100 kA
Number Of Poles
3
Dimensions
4.06 x 4.13 x 4.13 in
Specifications
100 kA at 240 VAC, 65 kA at 480 VAC Interrupt Rating, 50/60 Hz
