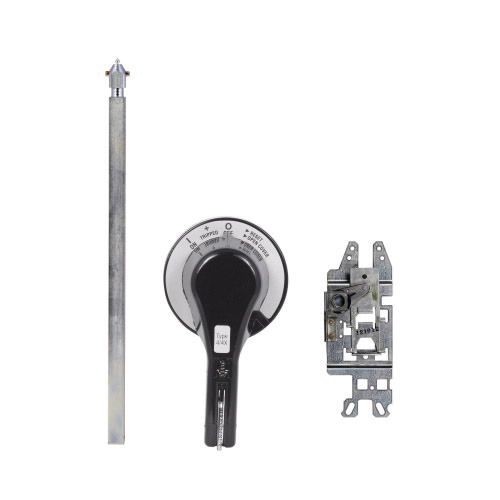

EATON HM2R12 Handle Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, Through-The-Door Handle Mounting, For Use With C Series J Frame Electronic Molded Case Circuit Breaker
EATON HM2R12 Handle Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, Through-The-Door Handle Mounting, For Use With C Series J Frame Electronic Molded Case Circuit Breaker
SKU: C-HHM2R12
Manufacturer Part Number: HM2R12
UPC: 786679165102
Documents
Features
- All rotary handle mechanisms include a handle "Lock Off" to prevent turning the breaker ON while in the OFF position and indicate ON/OFF/tripped/ reset positions
Specification
| NEMA Rating | NEMA 1/3R/12 |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Series | C Series |
| Handle/Operation | Rotary |
| Standard & Approvals | UL File No. E64983, CSA Certified |
| Shaft Length | 12 in |
| Dimensions | 4-3/4 x 19 x 9-1/4 in |
| Catalog ID | C-HHM2R12 |
| Suitable For Use With | J-Frame Molded Case Circuit Breakers |
