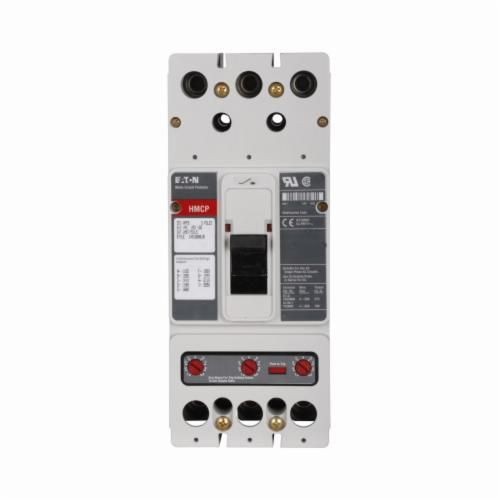

EATON HMCP250G5C Type HMCP Motor Circuit Protector, 600 VAC, 250 VDC, 250 A, 3 Poles, Magnetic Trip
EATON HMCP250G5C Type HMCP Motor Circuit Protector, 600 VAC, 250 VDC, 250 A, 3 Poles, Magnetic Trip
SKU: C-HHMCP250G5C
Manufacturer Part Number: HMCP250G5C
UPC: 786679151037
Features
- NEMA 5 starter
- 57.7 to 122.4 A motor full load current amperes
- A to I cam setting
- Non-aluminum terminal
Specification
| Frame | J |
|---|---|
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=PY52j05p7to |
| Amperage Rating | 250 A |
| Catalog ID | C-HHMCP250G5C |
| Connection Type | Line/Load |
| Dimensions | 4.06 in L x 4.13 in W x 10 in H |
| Enclosure Type | NEMA 5 |
| Series | Series C |
| Trip Range | 750 to 1500 A |
| Trip Type | Magnetic |
| Voltage Rating | 600 VAC, 250 VDC |
| Standard & Approvals | UL 489, CE Certified, CSA C22.2 No. 5.1, IEC 157-1 |
