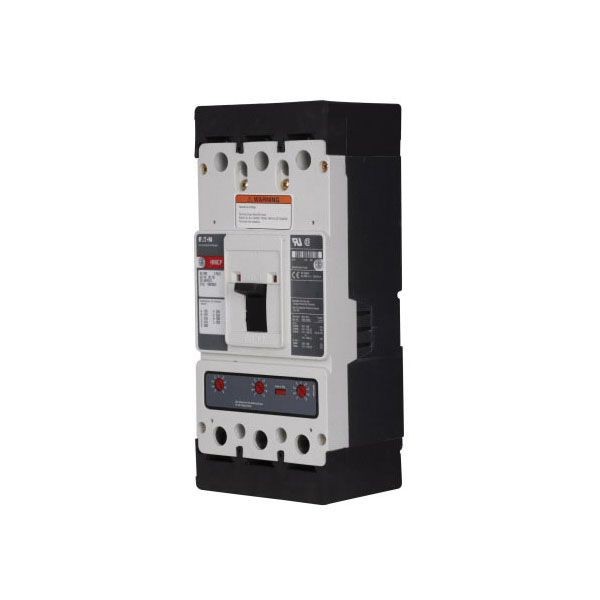

EATON HMCP400X5C C Series Type HMCP Motor Circuit Protector, 600 VAC, 250 VDC, 400 A, 3 Poles, Magnetic Trip
EATON HMCP400X5C C Series Type HMCP Motor Circuit Protector, 600 VAC, 250 VDC, 400 A, 3 Poles, Magnetic Trip
SKU: C-HHMCP400X5C
Manufacturer Part Number: HMCP400X5C
UPC: 786679150382
Features
- NEMA 5 starter
- 153.9 to 326.9 A motor full load current amperes
- A to I cam setting
- Non-aluminum terminal
Specification
| Frame | K |
|---|---|
| Number Of Poles | 3 |
| Series | Series C |
| Trip Range | 2000 to 4000 A |
| Trip Type | Instantaneous/Magnetic |
| Voltage Rating | 600 VAC, 250 VDC |
| Standard & Approvals | UL 489, CE Certified, CSA C22.2 No. 5.1, IEC 157-1 |
| Amperage Rating | 400 A |
| Dimensions | 4.1 in L x 5.5 in W x 10.13 in H |
| Connection Type | Line/Load |
| Enclosure Type | NEMA 5 |
