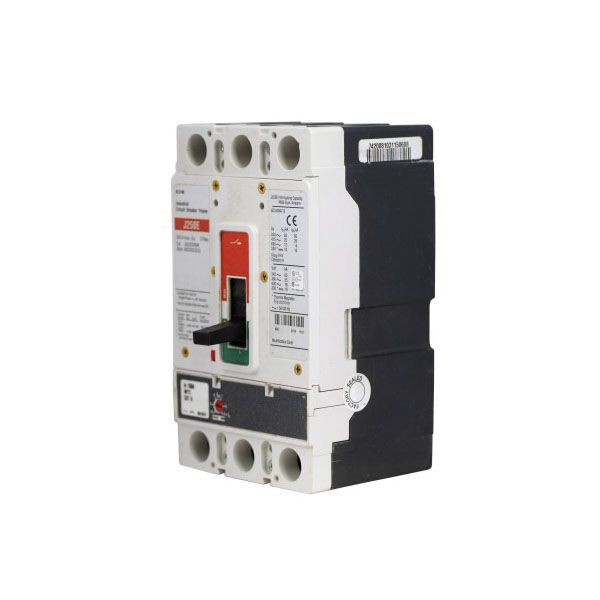

EATON JGE3150FAG Type JGE Molded Case Circuit Breaker, 600 VAC, 150 A, 18/25/65 kA Interrupt, 3 Poles, Adjustable Magnetic/Fixed Thermal Trip

Selected JGE3150FAGEATON JGE3150FAG Type JGE Molded Case Circuit Breaker, 600 VAC, 150 A, 18/25/65 kA Interrupt, 3 Poles, Adjustable Magnetic/Fixed Thermal Trip
JGE3150FAGEATON JGE3150FAG Type JGE Molded Case Circuit Breaker, 600 VAC, 150 A, 18/25/65 kA Interrupt, 3 Poles, Adjustable Magnetic/Fixed Thermal Trip

Documents

Short Description

Series G molded case circuit breakers are designed for circuit protection needs across the globe. A complete line of user friendly accessories and high performance interruption ratings meet a host of different application, industry and regional requirements.

Features

  • Compact design frees up panel space
  • Common field fit internal accessories make installation and custom configuration easy
  • Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
  • Patented contact design features high speed "blow open" action, resulting in superior performance
  • HACR rated
  • 80% rated
  • Metric mounting hardware
  • 65 kA at 240 VAC/25 kA at 415 VAC/25 kA at 480 VAC/18 kA at 600 VAC interrupt rating

Specification

Frame
JG
Frequency Rating
50/60 Hz
Interrupt Rating
18 kA
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=LcFMAGwrZvM
Amperage Rating
150 A
Catalog ID
C-HJGE3150FAG
Connection Type
Line/Load Terminal
Dimensions
9-1/2 x 5 x 6-1/2 in
Series
G Series
Temperature Rating
40 deg C
Trip Range
750 to 1550 A
Trip Type
Adjustable Fixed Thermal Magnetic
Type
Type JGE
Voltage Rating
600 VAC
Application
Industrial Application
Standard & Approvals
UL 489, CSA C22.2 No. 5-02, CE, NEC, CCC Certified, IEEE 1584-2002, IEC 60947-2, Exceed Federal Specification Classification W-C-375b
Includes
Frame, Trip Unit, Standard Terminals, Mounting Hardware
