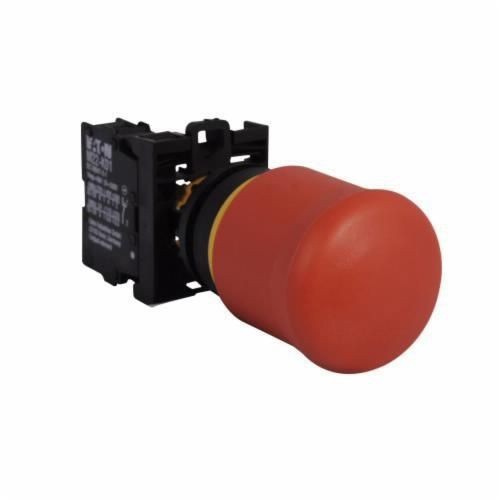

EATON RMQ-Titan® M22-PV-K01 Modular Non-Illuminated Emergency Stop, 22.5 mm, 1NC Contact, Push/Pull Operator, Red
EATON RMQ-Titan® M22-PV-K01 Modular Non-Illuminated Emergency Stop, 22.5 mm, 1NC Contact, Push/Pull Operator, Red
SKU: C-HM22-PV-K01
Manufacturer Part Number: M22-PV-K01
UPC: 786685271743
Documents
Features
- 1.46 in L x 1.38 in W x 3.66 in H
- Red button
Specification
| Color | Red |
|---|---|
| Series | M22 |
| Enclosure Type | NEMA 4X/13/IP67/IP69K |
| Size | 22.5 mm |
| Material | Plastic |
| Contact Mode | Maintained |
| Type | Emergency Stop |
| Connection Type | Screw |
| Bezel/Housing | Silver |
| Contact Configuration | 1NC |
| Operator Type | Push/Pull Knob |
| Contact Rating | 6 A at 240 VAC/3 A at 24 VDC |
| Standard & Approvals | CSA, CCC, Lloyd's Register, CE Certified, Bureau Veritas, GoST-R |
