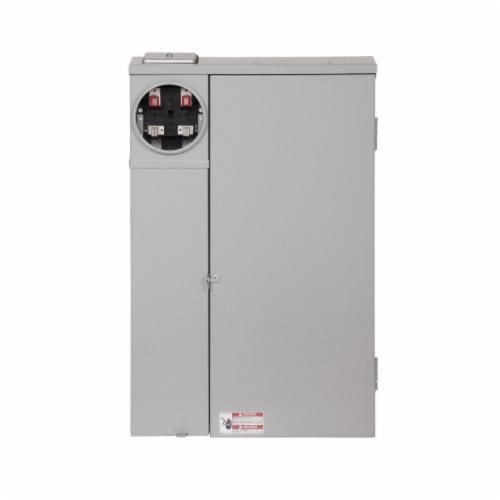

EATON MBE4040B200BTS Type CH 40-Circuit 1-Socket 40-Space 3-Wire All-In-One Combination Service Entrance Meter Breaker With MBDF9M Mechanical Interlock Deadfront Cover, 120/240 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure

Selected MBE4040B200BTSEATON MBE4040B200BTS Type CH 40-Circuit 1-Socket 40-Space 3-Wire All-In-One Combination Service Entrance Meter Breaker With MBDF9M Mechanical Interlock Deadfront Cover, 120/240 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure
MBE4040B200BTSEATON MBE4040B200BTS Type CH 40-Circuit 1-Socket 40-Space 3-Wire All-In-One Combination Service Entrance Meter Breaker With MBDF9M Mechanical Interlock Deadfront Cover, 120/240 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure

Documents

Features

  • 22 kA interrupt rating
  • CSR2200 main circuit breaker
  • 1 socket
  • Ring security
  • Aluminum bus material
  • NEMA 3R enclosure rating
  • 40-circuit
  • D box size

Specification

Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Amperage Rating
200 A
Enclosure Type
NEMA 3R
Phase
1
Voltage Rating
120/240 VAC
Feed Type
Overhead/Underground
Number of Jaws
4
Application
For type BR breakers
Wire Size
6 to 250 kcmil
Standard & Approvals
UL Listed, EUSERC Approved
Catalog ID
C-HMBE4040B200BTS
Dimensions
5.38 in L x 22 in W x 34.38 in H
