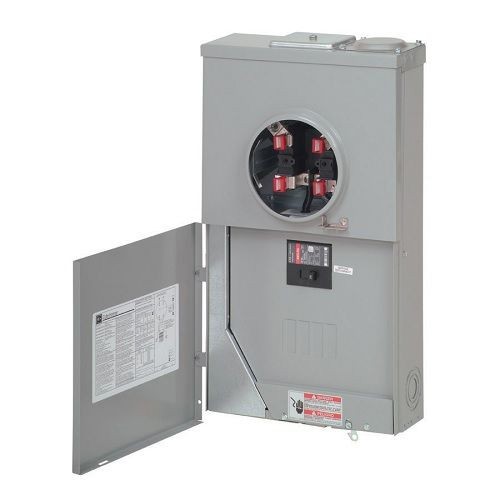

Cutler-Hammer MBT48B125BTS Type BR All-in-One Ringless Meter Breaker Combination, 120/240 VAC, 125 A, NEMA 3R Enclosure
Cutler-Hammer MBT48B125BTS Type BR All-in-One Ringless Meter Breaker Combination, 120/240 VAC, 125 A, NEMA 3R Enclosure
SKU: C-HMBT48B125BTS
Manufacturer Part Number: MBT48B125BTS
UPC: 782116157365
Documents
Features
- A device that may include a meter socket, main breaker and load center section within the same enclosure
- Meter socket and load center distribution section
- Stainless steel latches on meter compartments
- Several designs with horn bypass and fifth jaw
- Center-fed main breaker, lugs or provision
- Special channel for top exit
- 1 in BR type
- 22 kA interrupt current
- 4/8 distribution
- CSR2125 main
- 21 dimensions and enclosure shape
- Non-EUSERC residential
Specification
| Mounting Type | Surface |
|---|---|
| Number of Jaws | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 125 A |
| Catalog ID | C-HMBT48B125BTS |
| Enclosure Type | NEMA 3R |
| Feed Type | Overhead/Underground |
| Type | Type BR All-in-One Ringless |
| Voltage Rating | 120/240 V |
| Wire Size | #6 to 300 kcmil Line/Ground |
| Application | Residential Applications |
| Standard & Approvals | UL 414, UL File NO E52977, AEIC-EEI-NEMA, EUSERC, UBC/CBC Title 24, UL 67 |
