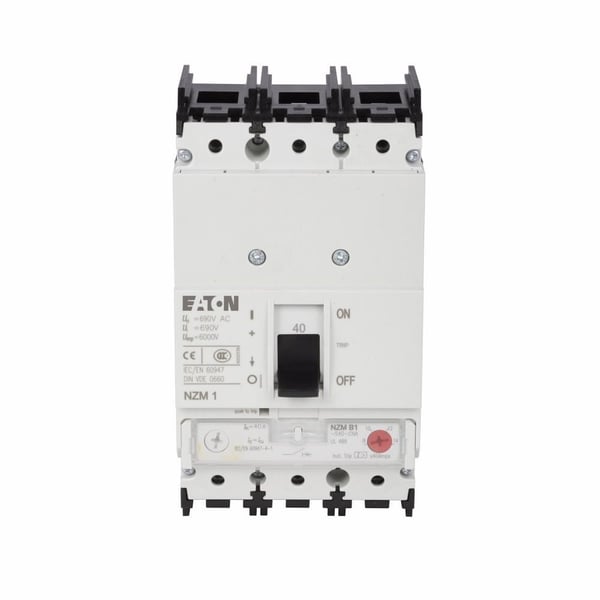

EATON NZMB1-A40-NA Type NZM1 Molded Case Circuit Breaker, 480 VAC, 40 A, 25 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected NZMB1-A40-NAEATON NZMB1-A32-NA Type NZM1 Molded Case Circuit Breaker, 480 VAC, 32 A, 25 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
NZMB1-A40-NAEATON NZMB1-A32-NA Type NZM1 Molded Case Circuit Breaker, 480 VAC, 32 A, 25 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

EATON NZM series MCCB provides the broadest offering of circuit breakers and accessories up to 1600 A and up to 150 kA. The range of protection units include selective LSI electronic trip units from as low as 160 A as well as motor protection with built-in 1-phase sensitivity. Suitable for global markets, including North American UL and shipping approvals, together with a built-in enhanced diagnostic capability, the NZM is the choice of both panel builders and machinery OEM's worldwide.

Features

  • Compact structure, with four frame sizes up to 1600 A
  • Switching capacities up to 150 kA and operational voltages up to 690 VAC can be managed without difficulty
  • Extensive list of accessories for multiple installation options
  • Several installation modes are optional
  • Innovative switching technology with a double break contact system reduces clearing time
  • In the event of a short circuit, the special shape and materials selected produce a repelling magnetic force that pushes the contacts apart in a fraction of a cycle
  • Distribution circuit protection

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
25 kA
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
40 A
Enclosure Type
IP40
Phase
3
Series
NZM
Trip Type
Thermal Magnetic
Voltage Rating
480 VAC
Application
Electrical Assemblies, Panels and EOEMs Applications
Standard & Approvals
IEC/EN 60947
EANUCC13
4015082722531
Dimensions
2.68 x 3.54 x 5.71 in
Connection Type
Box Terminal/Front Frame Clamp
Catalog ID
C-HNZMB1-A40-NA
Actuator Type
Rocker Lever
Video
https://www.youtube.com/watch?v=Qbw1LaeJyuY
Frame
NZM1
Type
Type NZM1
Trip Range
32 to 40 A
Temperature Rating
-25 to 50 deg C
