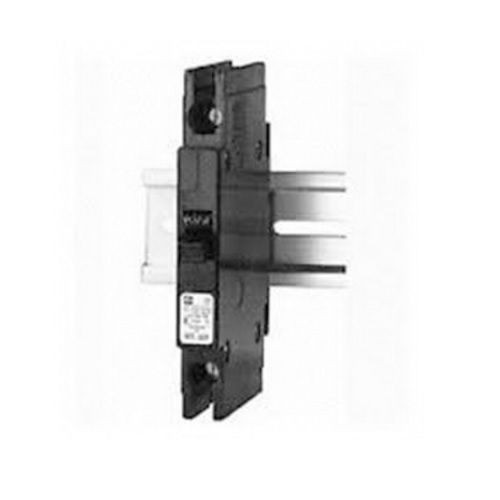

EATON QuickLag® QCR1020 Type QCR Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag® QCR1020 Type QCR Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable/Thermal Magnetic Trip
SKU: C-HQCR1020
Manufacturer Part Number: QCR1020
UPC: 786679144060
Documents
Short Description
Features
- Wide variety of mounting styles available to install in many different applications
- Complete line of accessories allows customization to fit any applications
- Compact designs available to minimize panel size
- Fixed instantaneous trip
- Eaton type QCR circuit breakers have as a standard feature provisions for 35 mm DIN rail rear mounting with a spring-loaded release
- Optional clips for individual mounting are available as a separate accessory
- 1/2 in (12.7 mm) wide per pole
- Black cases with black handles
- Three position handle ON, tripped (center), OFF
- Thermal-magnetic protection
- Cu/Al wire
- Non-interchangeable trip
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Rear |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | C-HQCR1020 |
| Connection Type | Cable-In/Cable-Out |
| Dimensions | 4.7 in L x 3.1 in W x 1.2 in H |
| Phase | 1 |
| Temperature Rating | 40 deg C |
| Trip Type | Long Time and Instantaneous |
| Type | Type QCR Molded Case Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 4 AWG |
| Application | For branch circuit protectors |
| Standard & Approvals | UL 489, UL E7819, CSA LR48907 |
