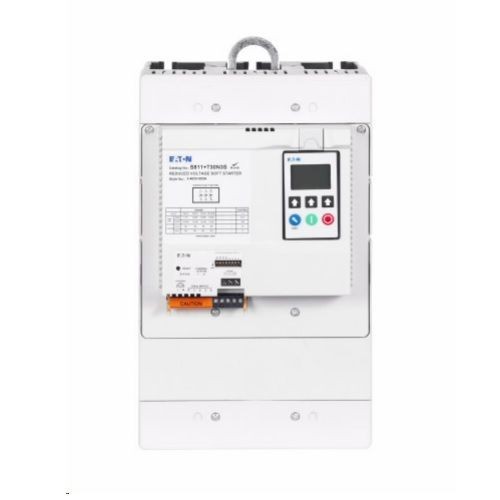

EATON S811+T18N3S Non-Combination T-Frame Soft Starter, 3 Poles, NEMA 0 Enclosure

Selected C HS811+T18N3S
C HS811+T18N3S

Documents

Short Description

S811+ Soft Starter, 180A, T-frame, Three-pole, 24V power, 200-600V operating voltage, 47-63 Hz, 1-2 conductors, #4 AWG to 500 kcmil wire, 120 Vdc, 240 Vac, Modbus RTU, NEMA 0, LCD display, -30°C to -50°C

Specification

Number Of Poles
3
Amperage Rating
180 A
Enclosure Type
NEMA 0
Dimensions
6.47 in L x 7.65 in W x 12.71 in H
Standard & Approvals
IEC 60947-4-2, EN 60947-4-2, UL Listed, UL Recognized, CSA File No. 3211-06, CSA Certi?ed For Elevator Duty, CE Marked, CSA Certified For Elevator Duty
Application
Motor And Power Control Equipment
Voltage Rating
200 to 600 VAC
Type
Soft Starter
Operating Temperature
-30 to 50 Degrees C
