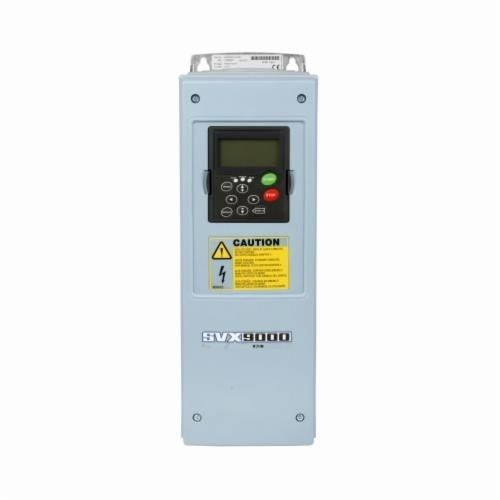

EATON SVX020A1-4A1B1 SVX9000 3-Phase Independent Adjustable Frequency Drive, 380/500/480 VAC, 31/38 A, 20 hp, 7.6 in W x 9.3 in D

Selected C HSVX020A1 4A1B1
C HSVX020A1 4A1B1

Documents

Short Description

SVX series adjustable frequency drives from EATON electrical sector are the next generation of drives specifically engineered for today's commercial and industrial applications. The power unit makes use of the most sophisticated semiconductor technology and a highly modular construction that can be flexibly adapted to the customer's needs. The input and output configuration (I/O) is designed with modularity in mind. The I/O is compromised of option cards, each with its own input and output configuration. The control module is designed to accept a total of five of these cards. The cards contain not only normal analog and digital inputs but also fieldbus cards. These drives continue the tradition of robust performance, and raise the bar on features and functionality, ensuring the best solution at the right price.

Features

  • Robust design, proven 500000 hr MTBF
  • Simplified operating menu allows for typical programming changes, while programming mode provides control of everything
  • Quick start wizard built into the programming of the drive ensures a smooth start-up
  • Keypad can display up to three monitored parameters simultaneously
  • Copy/paste function allows transfer of parameter settings from one drive to the next
  • Control logic can be powered from an external auxiliary control panel internal drive functions and fieldbus if necessary
  • FR6 frame size
  • Standard software series
  • Alphanumeric keypad
  • 3-phase, EMC H input options
  • Standard board modification

Specification

Mounting Type
Panel
Minimum Order Qty
1
Order Interval
1
Display Type
LCD
Enclosure Type
NEMA 1/IP21/Open
Series
SVX9000
Type
Adjustable Open Drive
Voltage Rating
380/500/480 VAC
Application
Commercial and Industrial Applications
Horsepower
20 hp
Depth
9.3 in
Catalog ID
C-HSVX020A1-4A1B1
Amperage Rating
31/38 A
Height
22 in
Standard & Approvals
UL 508C, CE Certified, IEC 61800-2, EN 61800-3
Width
7.6 in
