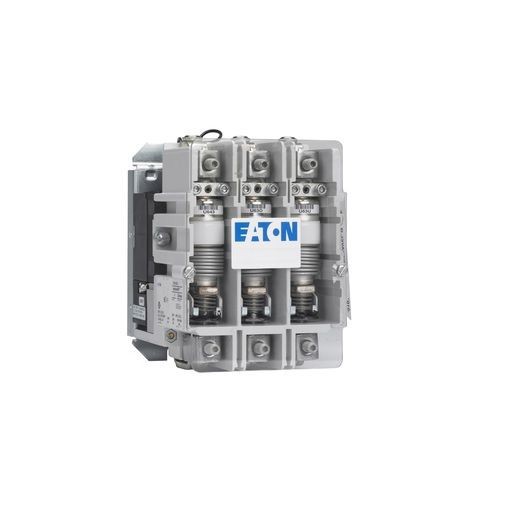

EATON V201K4CJ Non-Reversing Vacuum Contactor, 110/120 VAC V Coil, 135 A, 1NC Contact, 3 Poles

Selected V201K4CJEATON V201K4CJ Non-Reversing Vacuum Contactor, 110/120 VAC V Coil, 135 A, 1NC Contact, 3 Poles
V201K4CJEATON V201K4CJ Non-Reversing Vacuum Contactor, 110/120 VAC V Coil, 135 A, 1NC Contact, 3 Poles

Documents

Short Description

Vacuum contactors and starters were designed for starting and controlling three phase, 50/60 Hz, AC motors. Each contact is enclosed in a vacuum bottle to reduce and contain contact arcing. This design offers excellent performance for plugging and jogging applications.

Features

  • Rugged, compact and lightweight
  • Quiet operation
  • Long service life
  • 40 hp at 200 VAC, 50 hp at 230 VAC, 75 hp at 380 VAC, 100 hp at 460 VAC, 100 hp at 575 VAC power rating

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
135 A
Number Of Poles
3
Series
V200
Type
Non-Reversing
Application
For full voltage control of three phase squirrel cage motors
Standard & Approvals
UL File No. E1491, CSA, CE Certified, IEC 947-4-1
Dimensions
4.83 in W x 5.96 in D x 6.63 in H
Coil Power Rating
40 hp
Coil Voltage
110/120 VAC
Contact Configuration
1NC
Enclosure Type
NEMA 4
