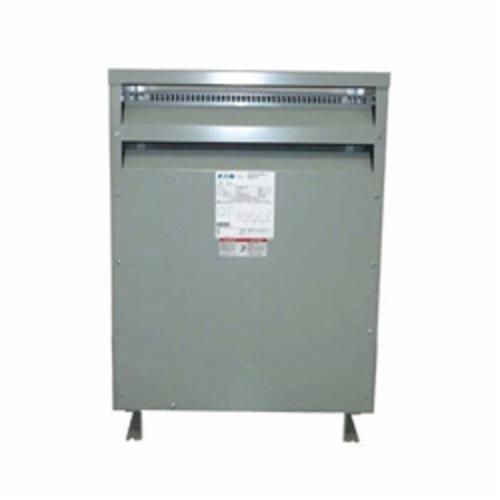

EATON V48M28T1516 Type DT-3 Dry Type Energy Efficient Ventilated Distribution Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 15 kVA Power Rating, 60 Hz, 3 ph Phase

Pick Up Only
Selected V48M28T1516EATON V48M28T1216 Type DT-3 Dry Type Energy Efficient Ventilated Distribution Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 112.5 kVA Power Rating, 60 Hz, 3 ph Phase
V48M28T1516EATON V48M28T1216 Type DT-3 Dry Type Energy Efficient Ventilated Distribution Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 112.5 kVA Power Rating, 60 Hz, 3 ph Phase

Documents

Short Description

Eaton 2016 efficient transformer is UL approved to be installed 2 inch away from walls or obstructions. The industry minimum clearance is 6 inch. Eaton transformers will reduce your total installation depth by a minimum of 4 inch.

Features

  • Eaton voluntarily asked UL to verify the DOE 2016 efficient transformers' efficiencies, customers can rely on Eaton transformers to meet their required efficiency
  • Eaton increased the 2016 transformer's bottom-to-floor clearance to a minimum of 4 in, and changed the mounting feet to face outward, these changes provide ease of conveyance once the pallet has been removed and ease of installation
  • OSHPD California seismic certified all floor mounted frames and up to 150 kVA wall mounted
  • Increased wiring compartment
  • Reduced shipping damage risk by bottom mounting core-coils and reinforced enclosure bottom
  • Aluminum winding coil
  • 939 frame
  • WS57 weathershield
  • 280B wiring connection
  • 10 CFR Part 431 (2016) Efficient

Specification

Frequency Rating
60 Hz
Insulation
220 deg C
Number of Taps
2 to 4
Minimum Order Qty
1
Order Interval
1
Catalog ID
C-HV48M28T1516
Dimensions
17.75 in L x 21.88 in W x 28 in H
Efficiency
DOE 2016
Enclosure Type
NEMA 2
Phase
3
Power Rating
15 kVA
Primary Voltage
480 V
Secondary Voltage
120 to 208V
Temperature Rating
150 deg C
Type
General Purpose
Standard & Approvals
DOE2016 Efficient, UL Listed
