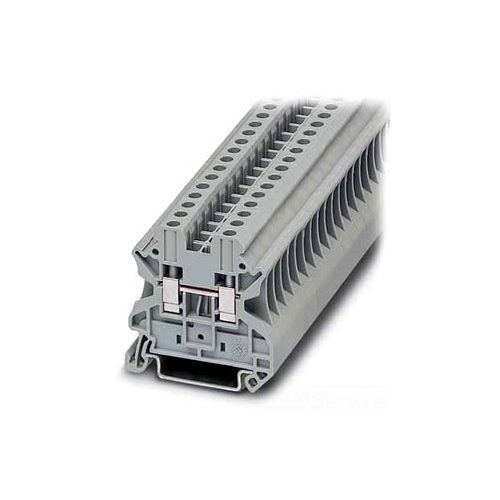

Cutler-Hammer XBUT10 XB Series Standard Feed-Thru Terminal Block, 600 VAC, 65 A, 20 to 6 AWG Wire, DIN Rail Mount
Cutler-Hammer XBUT10 XB Series Standard Feed-Thru Terminal Block, 600 VAC, 65 A, 20 to 6 AWG Wire, DIN Rail Mount
SKU: C-HXBUT10
Manufacturer Part Number: XBUT10
UPC: 782116904976
Features
- IEC 60 947-7-1 1000 V/76 A/20 to 6 AWG
- EN 50 019 750 V/54 to 69 A/20 to 6 AWG
- UL-cUL rating 600 V/65 A/20 to 6 AWG
Specification
| Material | Polyamide 6.6 |
|---|---|
| Mounting Type | DIN Rail |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Connection Type | Screw |
| Series | XB Series |
| Temperature Rating | 125 |
| Voltage Rating | 600 V |
| Standard & Approvals | UL-cUL Listed, EN 50 019, IEC 60 947-7-1 |
| Wire Strip Length | 0.39 |
| Wire Size | 20 to 6 AWG |
| Torque Rating | 1.5 to 1.8 |
| Terminal Size | 10.2 mm W |
| Dimensions | 1.85 in L x 0.4 in W |
| Catalog ID | C-HXBUT10 |
| Amperage Rating | 65 A |
