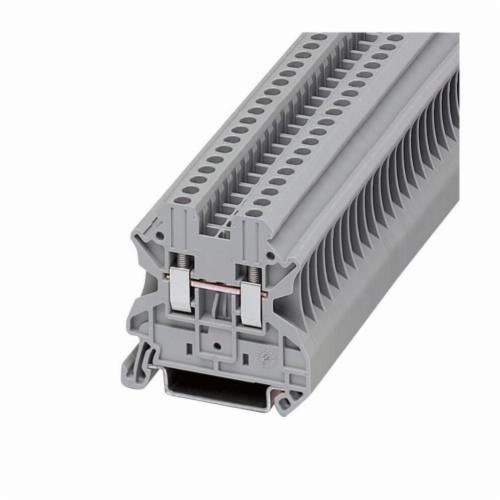

EATON XBUT25 IEC-XB 1-Level Terminal Block, 800/700/600 VAC, 20/22/28/32 A, 26 to 12 AWG Wire, DIN Rail Mount
EATON XBUT25 IEC-XB 1-Level Terminal Block, 800/700/600 VAC, 20/22/28/32 A, 26 to 12 AWG Wire, DIN Rail Mount
SKU: C-HXBUT25
Manufacturer Part Number: XBUT25
UPC: 782116894260
Features
- IEC 60 947-7-1 800 V/32 A/26 to 12 AWG
- EN 50 019 750 V/22 A/28 A/26 to 12 AWG
- UL-cUL rating 600 V/20 A/26 to 12 AWG
Specification
| Material | Polyamide 6.6 |
|---|---|
| Mounting Type | 35 mm DIN Rail |
| Series | XB |
| Temperature Rating | -40 to 275 deg F |
| Torque Rating | 0.6 to 0.8 Nm |
| Voltage Rating | 800/700/600 VAC |
| Wire Strip Length | 0.35 in |
| Standard & Approvals | UL-cUL Listed, EN 50 019, IEC 60 947-7-1 |
| Color | Gray |
| Connection Type | Screw |
| Dimensions | 1.85 in L x 0.205 in W |
| Amperage Rating | 20/22/28/32 A |
| Wire Size | 26 to 12 AWG |
| Terminal Size | 5.2 mm W |
