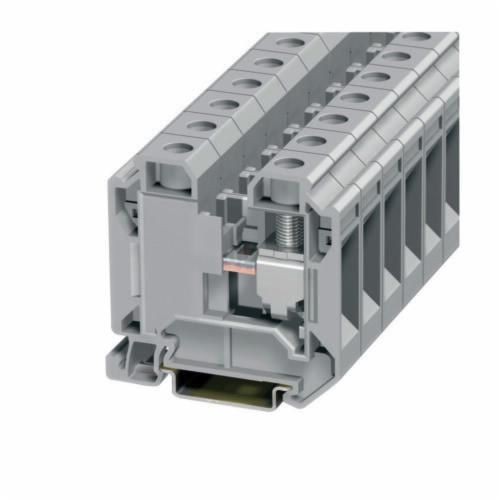

EATON XBUT35 IEC-XB 1-Level Terminal Block, 800/700/600 VAC, 40/50 A, 24 to 8 AWG Wire, DIN Rail Mount
EATON XBUT35 IEC-XB 1-Level Terminal Block, 800/700/600 VAC, 40/50 A, 24 to 8 AWG Wire, DIN Rail Mount
SKU: C-HXBUT35
Manufacturer Part Number: XBUT35
UPC: 782116905065
Features
- 8 AWG maximum wire size
Specification
| Mounting Type | DIN Rail |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Connection Type | Screw |
| Standard & Approvals | UL Listed, CSA Certified |
| Material | Polyamide |
| Wire Size | 24 to 8 AWG |
| Voltage Rating | 800/700/600 VAC |
| Type | Single Level |
| Terminal Size | 16 mm |
| Temperature Rating | -40 to 275 deg F |
| Series | IEC-XB |
| Dimensions | 2.37 in L x 0.63 in W |
| Catalog ID | C-HXBUT35 |
| Amperage Rating | 40/50 A |
