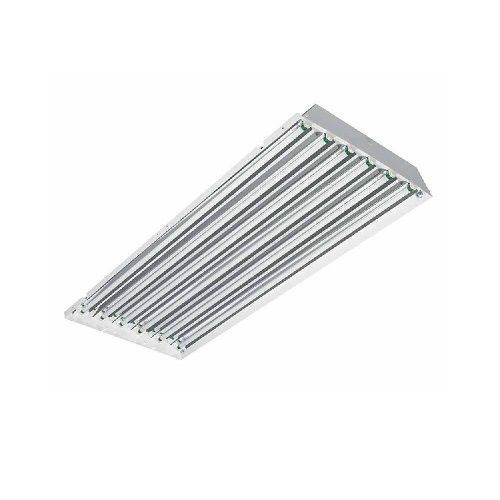

Signify Luminaires Day-Brite FBD632-UNV-1/42-EBH Rectangular High Bay Fixture, (6) F32T8 Fluorescent Lamp, 222 W Fixture, 108/305 VAC, White Polyester Powder Coated Housing

Selected Signify Luminaires Day-Brite FBD632-UNV-1/42-EBH Rectangular High Bay Fixture, (6) F32T8 Fluorescent Lamp, 222 W Fixture, 108/305 VAC, White Polyester Powder Coated Housing
Signify Luminaires Day-Brite FBD632-UNV-1/42-EBH Rectangular High Bay Fixture, (6) F32T8 Fluorescent Lamp, 222 W Fixture, 108/305 VAC, White Polyester Powder Coated Housing

Documents

Short Description

The Philips Day-Brite / Philips CFI FBD fluorescent high bay is a flexible luminaire designed to meet the needs of today's industrial environment. This luminaire is available with T5HO or T8 lamps. The 95% reflective specular aluminum reflectors and solid body design result in a sturdy and efficient luminaire. A variety of mounting methods and accessories allow the luminaire to be used in many different types of applications.

Features

  • 95% reflective secular aluminum reflectors maximize luminaries efficiency and control light distribution
  • Locking type lampholders
  • Quarter turn fasteners allow reflector to swing down for easy access to ballasts
  • One 4-lamp and one 2-lamp electronic ballasts, high ballast factor, direct distribution

Specification

Housing Finish
Polyester Powder Coated
Housing Material
Steel
Lamp Type
T8 Fluorescent
Lamp Wattage
32 W
Light Color
White
Number of Lamps
6
Series
FBD
Type
Rectangular
Voltage Rating
108/305 VAC
Application
Industrial Lighting Applications
Standard & Approvals
cULus Listed Damp Locations, RoHS Compliant, ARRA Compliant, BAA Compliant
Dimensions
48-1/2 in L x 20-1/4 in W x 3-1/2 in H
Ballast Type
Electronic
Fixture Wattage
222 W
