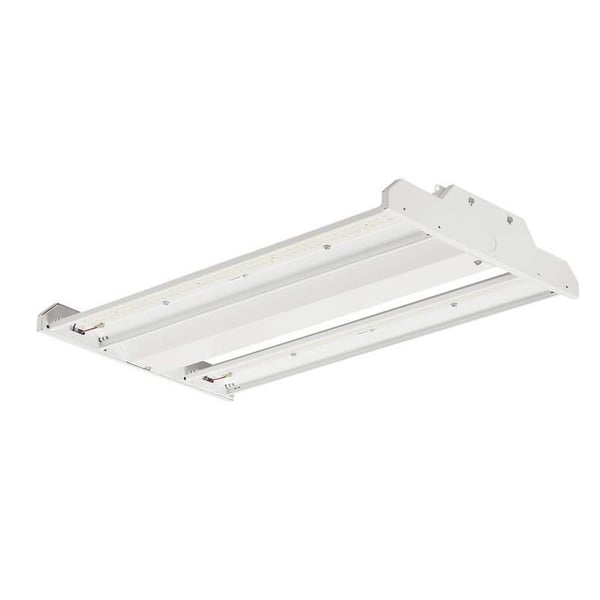

Signify Luminaires Day-Brite FBX24LL50-UNV Linear High Bay Fixture, LED Lamp, 120 to 277 VAC, Polyester Powder Coated Housing
Signify Luminaires Day-Brite FBX24LL50-UNV Linear High Bay Fixture, LED Lamp, 120 to 277 VAC, Polyester Powder Coated Housing
SKU: LOLFBX24LL50-UNV
Manufacturer Part Number: FBX24LL50-UNV
UPC: 781370646516
Short Description
Features
- Metal housing and reflectors provide excellent thermal transfer to extend component life
- End holes to attach V bracket for chain or cable hanging
- 7/8 in size knockout at each end of luminaries for wiring or motion detector
- Polyester powder finish for excellent impact and corrosion resistance
- LED light engines and drivers are field replaceable
- Dimming drivers are standard, control is 0 to 10 VDC
- SpaceWise automated wireless technology provides integrated occupancy sensing and dimming for additional control and energy savings
- Requiring no system re-wiring, spaceWise technology is appropriate for retrofit or new design and is an ideal replacement system for typical industrial layouts
- -35 deg C to 40 deg C ambient temperature, 4 kV standard surge protection
Specification
| Housing Finish | Polyester Powder Coated |
|---|---|
| Housing Material | Metal |
| Lamp Type | LED |
| Lighting Technology | Space Wise |
| Lumens | 24000 Lumens |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 100000 hr |
| Catalog ID | LOLFBX24LL50-UNV |
| Color Rendering Index (CRI) | 80 |
| Color Temperature | 5000 K |
| Dimensions | 23-7/8 in L x 24 in W x 2-7/8 in H |
| Series | FBX |
| Type | Linear |
| Voltage Rating | 120 to 277 VAC |
| Application | For used to illuminate retail, cold storage, manufacturing, warehousing and many other large indoor spaces with control and precision |
| Standard & Approvals | UL 1598, ETL, DLC Listed, RoHS Compliant, ARRA Compliant, BAA Compliant |
