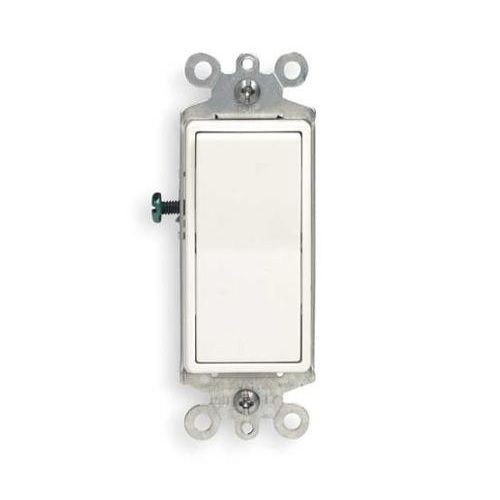

Leviton® Decora® 5604-2W 4-Way Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power Rating

Selected Leviton® Decora® 5604-2W 4-Way Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power Rating
Leviton® Decora® 5604-2W 4-Way Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power Rating

Documents

Short Description

Featuring a look and feel that qualify them as modern classics, Decora® designer rocker switches add so much at a modest cost that no home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Legendary Decora® designer rocker switches come in a variety of colors to harmonize with any decor. Their sturdy construction and dependable performance are everything you'd expect from the pre-eminent switch maker.

Features

  • Switch frame shields against dust and fits in wallplate to prevent rocker binding
  • Side wire and quickwire (12 AWG or 14 AWG copper or copper clad wire) push-in terminal wiring options
  • Sturdy construction for long service life
  • Full rated current capacity with tungsten, fluorescent or resistive loads
  • Motor capacity is 80% of switch rating
  • Conform to all NEMA standard specifications

Specification

Material
Thermoplastic
Mounting
Wallplate
Power Rating
1/2 hp at 120 VAC, 2 hp at 277 VAC
Terminal Type
Quickwire Push-In/Side Wired
Type
4-Way Grounding
Voltage Rating
120/277 VAC
Application
Residential
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL File No. E-7458, CSA File No. LR-3413, NOM 057
Amperage Rating
15 A
Dimensions
4.2 in H x 1.3 in W x 0.99 in D
Action
Quiet
Actuator
Rocker
Color
White
Contact Rating
15 A at 120/277 VAC
Environmental Conditions
-40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating
